G104X1-L04 Datasheet | Chi Mei

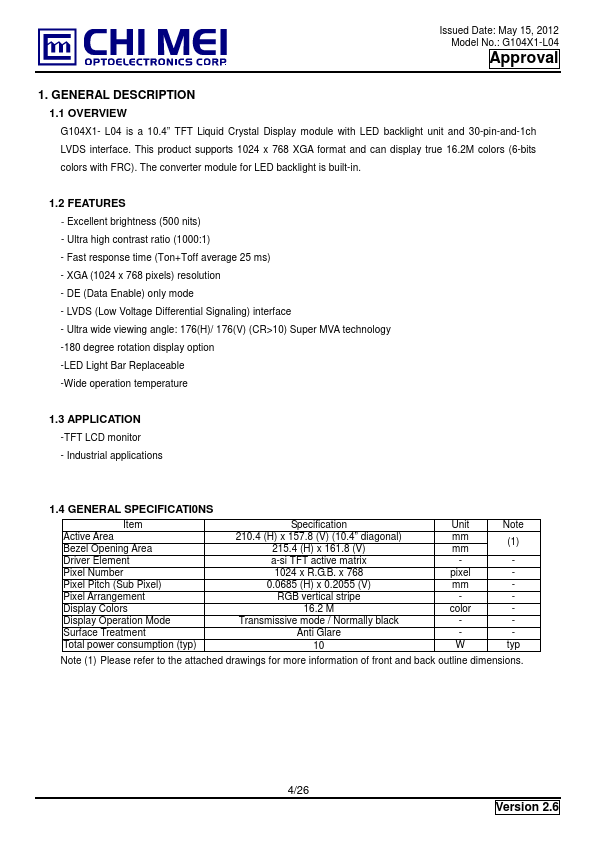

Issued Date: May 15, 2012 Model No.: G104X1-L04 Approval TFT LCD Approval Specification MODEL NO.: G104X1 - L04 Customer: Approved by: Note: Approved By Checked By Prepared By yuhsiang.chang clark.kuo yunyun.liu (張喻翔/514-10922) (郭鐘亮/514-10921) (劉芸芸/514-10928) 2012-05-17 16:07:19 CST 2012-05-16 09:06:22 CST 2012-05-16 09:04:38 CST 1/26 Version 2.6 Issued Date: May 15, 2012 Model No.: G104X1-L04 Approval 1. GENERAL DESCRIPTION 1.1 OVERVIEW G104X1- L04 is a 10.4” TFT Liquid Crystal Display module with LED backlight unit and 30-pin-and-1ch LVDS interface. This product supports 1024 x 768 XGA format and can display true 16.2M colors (6-bits colors with FRC). The converter module for LED backlight is built-in. 1.2 Features - Excellent brightness (500 nits) - Ultra high contrast ratio (1000:1) - Fast response time (Ton+Toff average 25 ms) - XGA (1024 x 768 pixels) resolution - DE (Data Enable) only mode - LVDS (Low Voltage Differential Signaling) interface - Ultra wide viewing angle: 176(H)/ 176(V) (CR>10) Super MVA technology -180 degree rotation display option -LED Light Bar Replaceable -Wide operation temperature 1.3 APPLICATION -TFT LCD monitor - Industrial applications 1.4 GENERAL...
