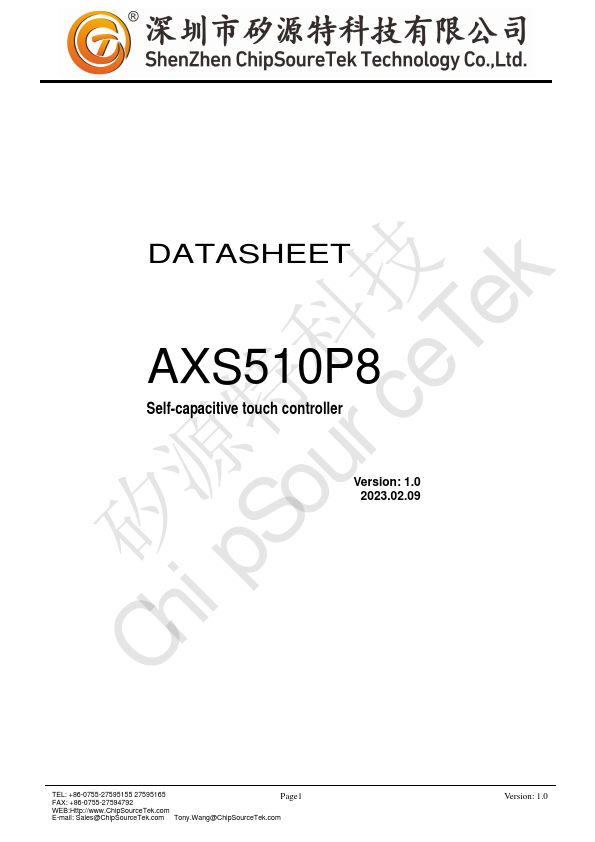

AXS510P8 Overview
Description
AXS510P8 is a high-performance self-capacitor touch key controller that supports various self-capacitor key, slider or scroll wheel patterns and has excellent signal-to-noise ratio to achieve high reliability while maintaining ultra-low power consumption. AXS510P8 also supports LED dimming control base on PWM.

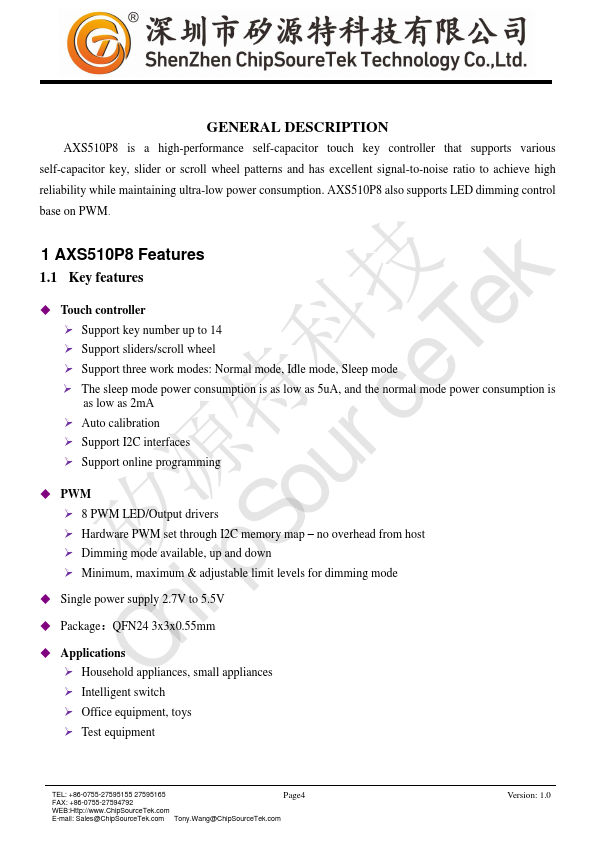

Key Features
- Support key number up to 14
- Support sliders/scroll wheel T
- Support three work modes: Normal mode, Idle mode, Sleep mode e
- The sleep mode power consumption is as low as 5uA, and the normal mode power consumption is as low as 2mA c
- Auto calibration
- Support I2C interfaces r
- Support online programming u PWM o
- 8 PWM LED/Output drivers
- Hardware PWM set through I2C memory map – no overhead from host S
- Dimming mode available, up and down p
