CST1608A Overview

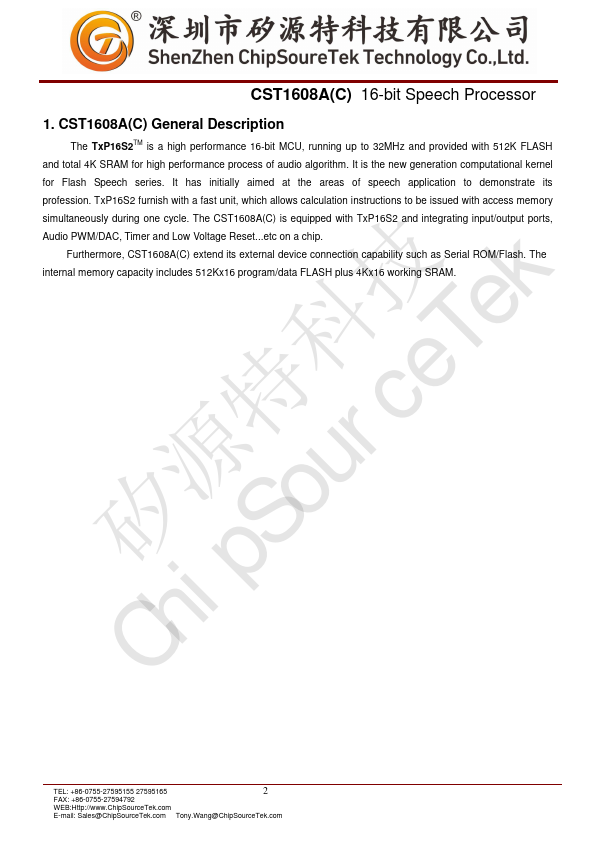

The TxP16S2TM is a high performance 16-bit MCU, running up to 32MHz and provided with 512K FLASH and total 4K SRAM for high performance process of audio algorithm. It is the new generation putational kernel for Flash Speech series. It has initially aimed at the areas of speech application to demonstrate its profession.

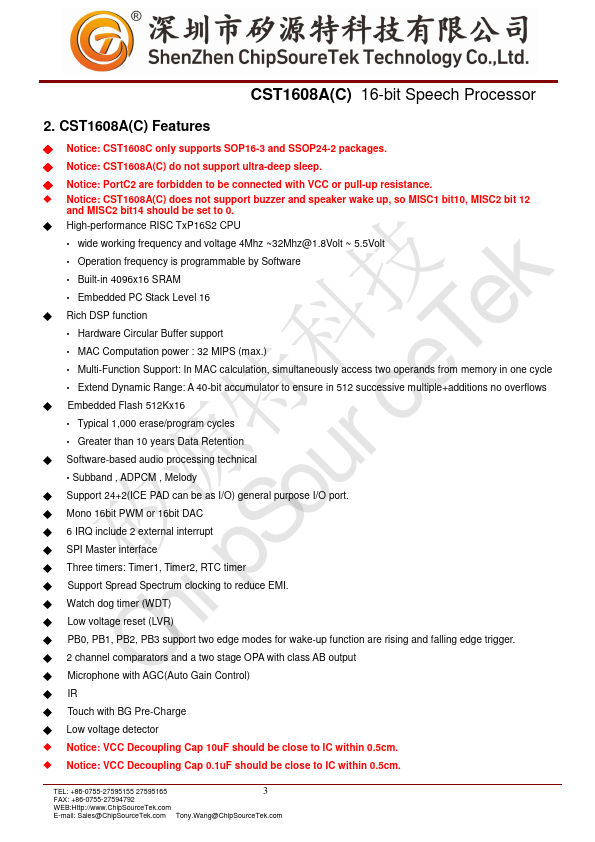

CST1608A Key Features
- Notice: CST1608C only supports SOP16-3 and SSOP24-2 packages
- Notice: CST1608A(C) do not support ultra-deep sleep
- Notice: PortC2 are forbidden to be connected with VCC or pull-up resistance
- Rich DSP function ‧ Hardware Circular Buffer support ‧ MAC putation power : 32 MIPS (max.) ‧ Multi-Function Support: In
- Embedded Flash 512Kx16 ‧ Typical 1,000 erase/program cycles ‧ Greater than 10 years Data Retention
- Software-based audio processing technical ‧Subband , ADPCM , Melody
- Support 24+2(ICE PAD can be as I/O) general purpose I/O port
- Mono 16bit PWM or 16bit DAC
- 6 IRQ include 2 external interrupt
- SPI Master interface
