CST4435 - P-Ch 30V Fast Switching MOSFETs

General Description

converter applications.

📥 Download Datasheet

Datasheet Details

Part number CST4435
Manufacturer ChipSourceTek
File Size 1.01 MB
Description P-Ch 30V Fast Switching MOSFETs
Datasheet download datasheet CST4435 Datasheet

Full PDF Text Transcription for CST4435 (Reference)

Note: Below is a high-fidelity text extraction (approx. 800 characters) for CST4435. For precise diagrams, and layout, please refer to the original PDF.

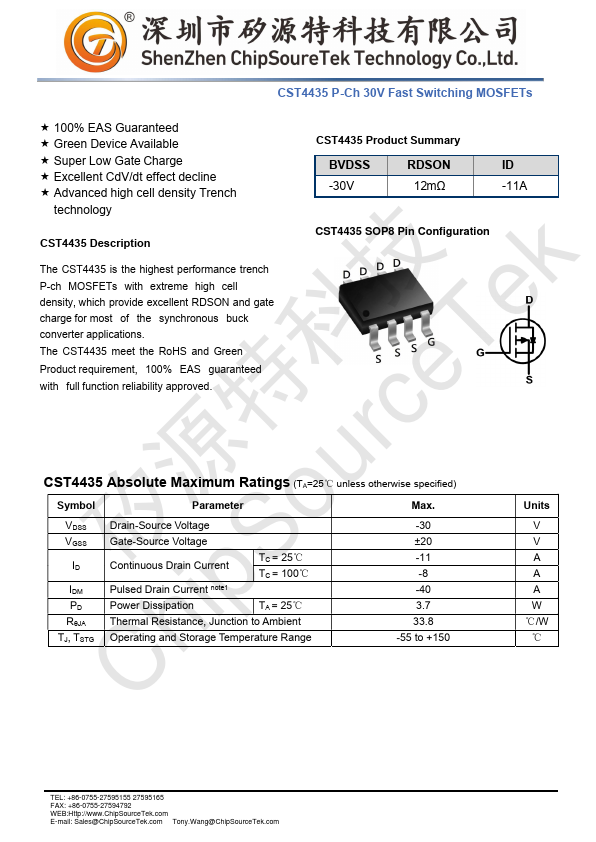

CST4435 P-Ch 30V Fast Switching MOSFETs  100% EAS Guaranteed  Green Device Available CST4435 Product Summary  Super Low Gate Charge  Excellent CdV/dt effect decline ...

View more extracted text
ct Summary  Super Low Gate Charge  Excellent CdV/dt effect decline  Advanced high cell density Trench BVDSS -30V RDSON 12mΩ ID -11A technology CST4435 Description The CST4435 is the highest performance trench k P-ch MOSFETs with extreme high cell density, which provide excellent RDSON and gate e charge for most of the synchronous buck converter applications. The CST4435 meet the RoHS and Green T Product requirement, 100% EAS guaranteed with full function reliability approved. CST4435 SOP8 Pin Configuration urce CST4435 Absolute Maximum Ratings (TA=25℃ unless otherwise specified) Symbol Parameter Max.
