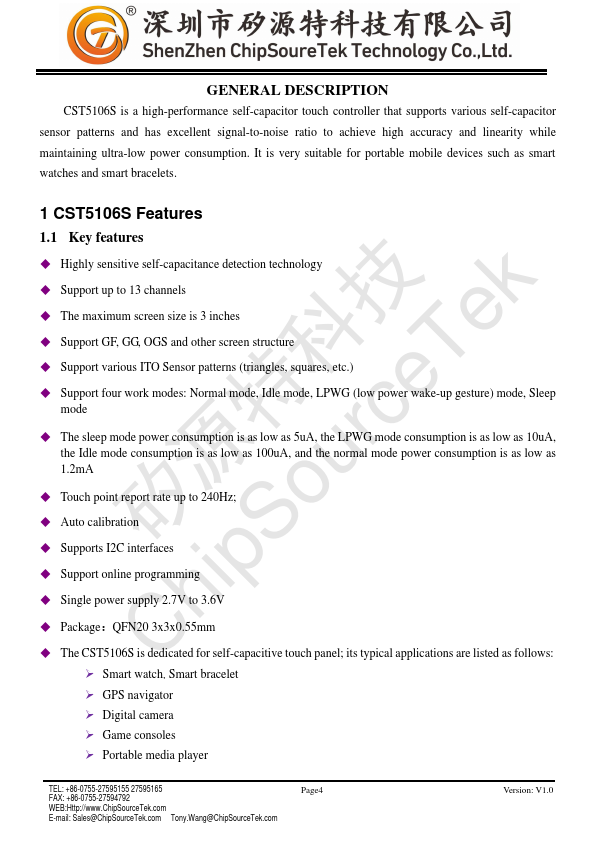

GENERAL DESCRIPTION
CST5106S is a high-performance self-capacitor touch controller that supports various self-capacitor sensor patterns and has excellent signal-to-noise ratio to achieve high accuracy and linearity while maintaining ultra-low power consumption. It is very suitable for portable mobile devices such as smart watches and smart bracelets.
Chip S矽ou源rc特e T科ek技
1 CST5106S Features
1.1 Key Features
- Highly sensitive self-capacitance detection technology
- Support up to 13 channels
- The maximum screen size is 3 inches
- Support GF, GG, OGS and other screen structure
- Support various ITO Sensor patterns (triangles, squares, etc.)
- Support four work modes: Normal mode, Idle mode, LPWG (low power wake-up gesture) mode, Sleep mode
- The sleep mode power consumption is as low as 5u A, the LPWG mode consumption is as low as 10u A, the Idle mode consumption is as low as 100u A, and the normal mode power consumption is as low as 1.2m A
- Touch point report rate up to 240Hz;
- Auto calibration
- Supports I2C interfaces
- Support online programming
- Single power supply 2.7V to 3.6V
- Package：QFN20 3x3x0.55mm
- The CST5106S is dedicated for self-capacitive touch panel; its typical applications are listed as follows:
- Smart watch, Smart bracelet
- GPS navigator
- Digital camera
- Game consoles
- Portable media player
