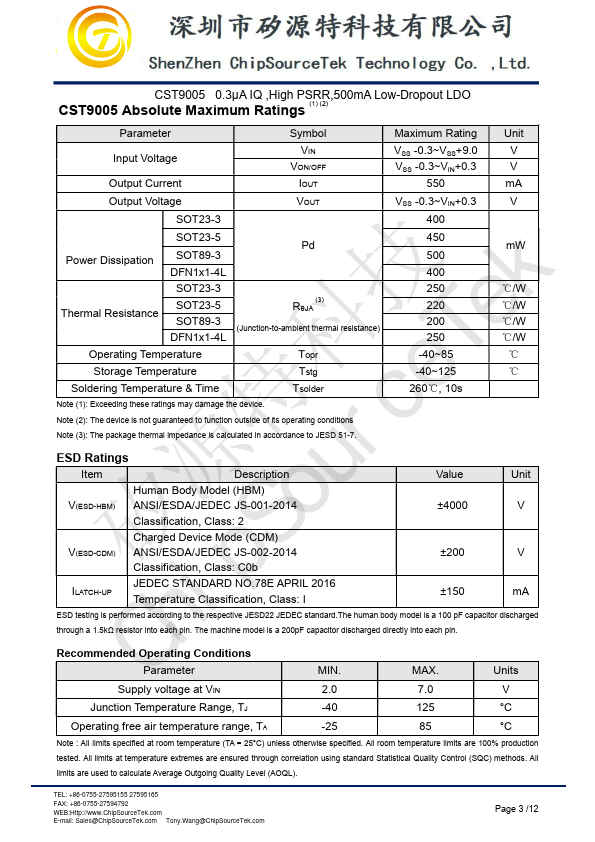

Chip S矽ou源rc特e T科ek技 CST9005 0.3μA IQ ,High PSRR,500m A Low-Dropout LDO CST9005 Features - Low Power Consumption: 0.3u A (Typ) - Maximum Output Current: 500m A - Small Dropout Voltage 100m V@100m A (Vout=3.3V) - PSRR=70d B@1KHz - Input Voltage Range: 2.0V~7.0V - Output Voltage Range: 0.8V~3.6V (customized on mand in 0.05V steps) - High Accurate: ±1.5% - Integrated Short-Circuit Protection - Good Transient Response - Over-Temperature Protection - Support Fixed Output Voltage - Output Current Limit - Stable with Ceramic Capacitor - Available Package SOT23-3 SOT23-5 SOT89-3 DFN1x1-4L - Ro HS pliant and Lead (Pb) Free CST9005 Application - Battery-powered equipment - Reference voltage sources - Low Power Microcontrollers - Wireless munication Equipment - Audio/Video Equipment - Portable games CST9005 Description The CST9005 series are highly precise, low noise, positive voltage LDO regulators manufactured using CMOS processes. The series achieves high ripple rejection and low dropout and consists of a standard voltage source, an error correction, current limiter and a phase pensation circuit plus a driver transistor. Output voltage is selectable in 0.05V increments within a range of 0.8V ~ 3.6V. The series is also patible with low ESR ceramic capacitors which give added output stability.It provides up to 500m A of output current in miniaturized packaging. The Features of low quiescent current as low as 0.3μA and almost zero disable current is ideal for powering the battery equipment to a longer service life. The other Features include current limit function, Integrated Short-Circuit Protection ,over temperature protection and Fast discharge...
