IP2369 - Integrated buck-boost power Nmos / Charging management chip

Datasheet Summary

Description

5 6.1 Pin description 6 7 Internal block diagram of the chip 8 8 Limit parameters 9 9 Recommended working conditions 9 10 Electrical charact

Features

  • Charging specifications.
  • Integrated BUCK-BOOST, power NMOS.
  • Maximum charging power 45W.
  • Adaptive charging current adjustment.
  • External resistor can set full voltage,The full voltage of a single lithium battery can be set in 3.65V/4.1V/4.2V/4.35V/4.4V.
  • External resistance selection 2/3/4/5/6 series battery cell charging.
  • External resistor can set maximum charging power, maximum support 45W.
  • supports 0V battery charging.
  • Supports two USB ports.
  • 1.

📥 Download Datasheet

Datasheet preview – IP2369

Datasheet Details

Part number IP2369
Manufacturer ChipSourceTek
File Size 1.86 MB
Description Integrated buck-boost power Nmos / Charging management chip
Datasheet download datasheet IP2369 Datasheet

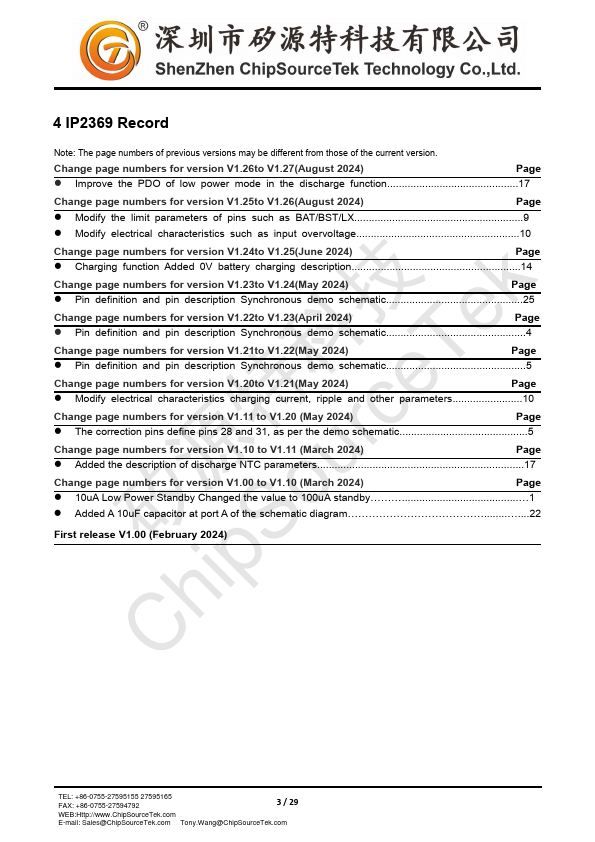

Additional preview pages of the IP2369 datasheet.

📁 Similar Datasheet

  • IP2369 - A power management (Injoinic)
  • IP2366 - A power management (Injoinic)
  • IP2368 - Integrated buck-boost driver (Injoinic)
  • IP2368 - A power management (Injoinic)
  • IP2368H - lithium battery charging and discharging management (Injoinic)
  • IP2301 - 1A High-Voltage Linear Lithium Battery Charging Management (Injoinic)
  • IP2312 - Single-cell lithium battery synchronous switch buck charger (Injoinic)
  • IP2313 - A high-voltage VIN synchronous buck charger (Injoinic)
  • IP2322 - dual series lithium battery/lithium-ion boost charger (Injoinic)
  • IP2325 - A boost charger (Injoinic)
Other Datasheets by ChipSourceTek
  • IP2363 - Power management chip
  • IP2364 - lithium battery buck charging IC
  • IP2365 - lithium battery/lithium-ion battery buck charging IC
  • IP2366 - Power management chip
  • IP2368 - a lithium battery charge management
  • IP2301 - 1A high-voltage linear lithium battery charging management chip
  • IP2305 - Dual-cell battery balancing charging chip
  • IP2312 - Single-cell lithium battery synchronous switch buck charger

Full PDF Text Transcription

Click to expand full text

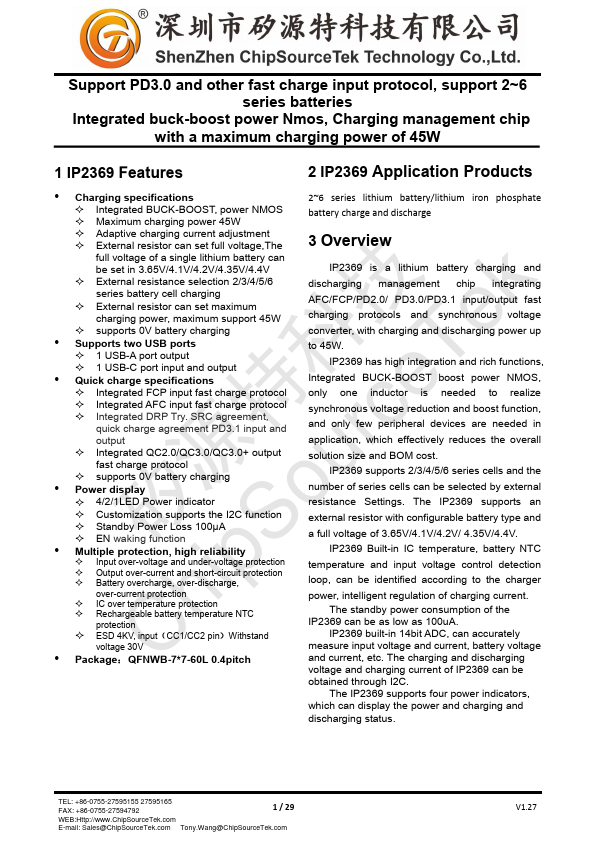

Support PD3.0 and other fast charge input protocol, support 2~6 series batteries Integrated buck-boost power Nmos, Charging management chip with a maximum charging power of 45W ChipSourceTek 1 IP2369 Features  Charging specifications  Integrated BUCK-BOOST, power NMOS  Maximum charging power 45W  Adaptive charging current adjustment  External resistor can set full voltage,The full voltage of a single lithium battery can be set in 3.65V/4.1V/4.2V/4.35V/4.
