TR16F024B Description
The TxP16ETM is a high performance 16-bit MCU, running up to 32MHz and provided with 24K FLASH and total 4K SRAM for high performance process of audio algorithm, power control and motor control. It is the new generation putational kernel for Flash DSP series. It has initially aimed at the areas of controller and multimedia digital signal processing (DSP) application to demonstrate its profession.

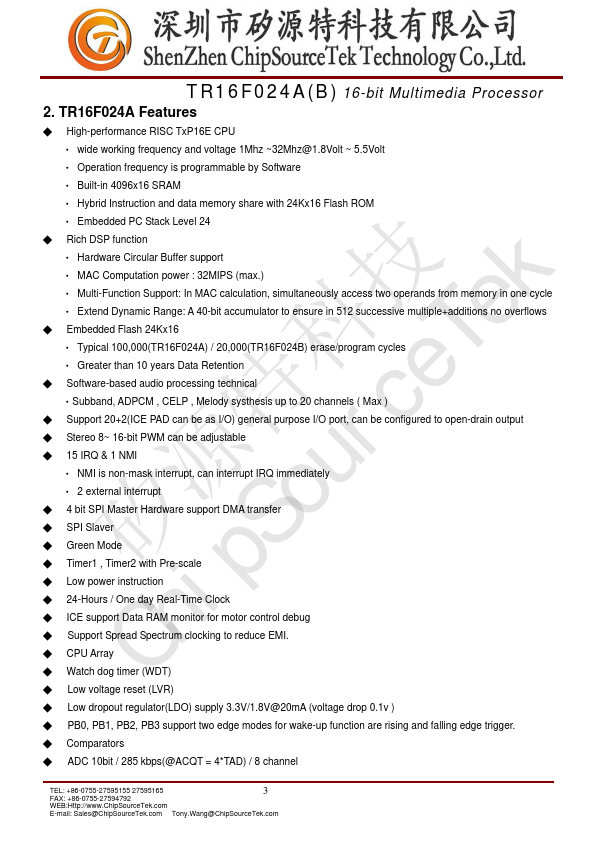

TR16F024B Key Features
- Rich DSP function ‧ Hardware Circular Buffer support ‧ MAC putation power : 32MIPS (max.) ‧ Multi-Function Support: In M
- Software-based audio processing technical ‧Subband, ADPCM , CELP , Melody systhesis up to 20 channels ( Max )
- Support 20+2(ICE PAD can be as I/O) general purpose I/O port, can be configured to open-drain output
- Stereo 8~ 16-bit PWM can be adjustable
- 15 IRQ & 1 NMI
- 4 bit SPI Master Hardware support DMA transfer
- SPI Slaver
- Green Mode
- Timer1 , Timer2 with Pre-scale
- Low power instruction
