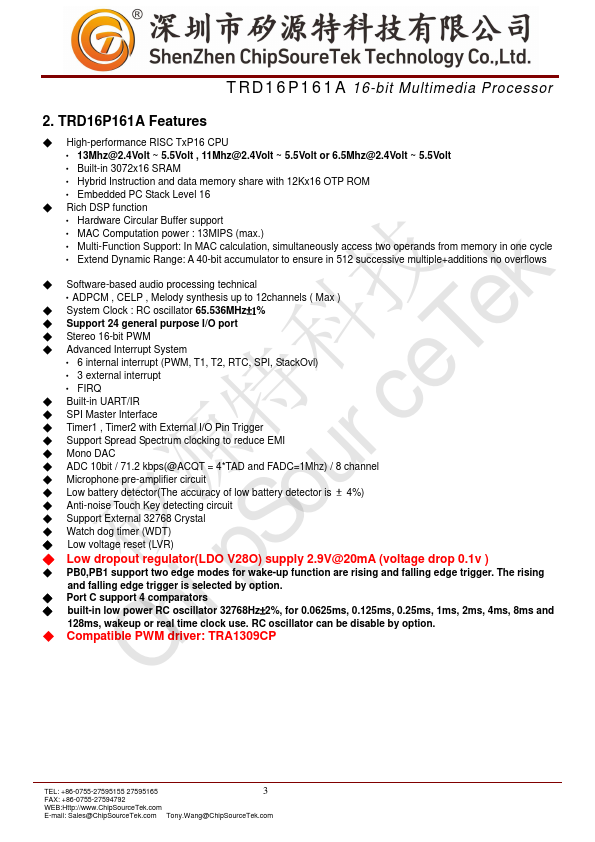

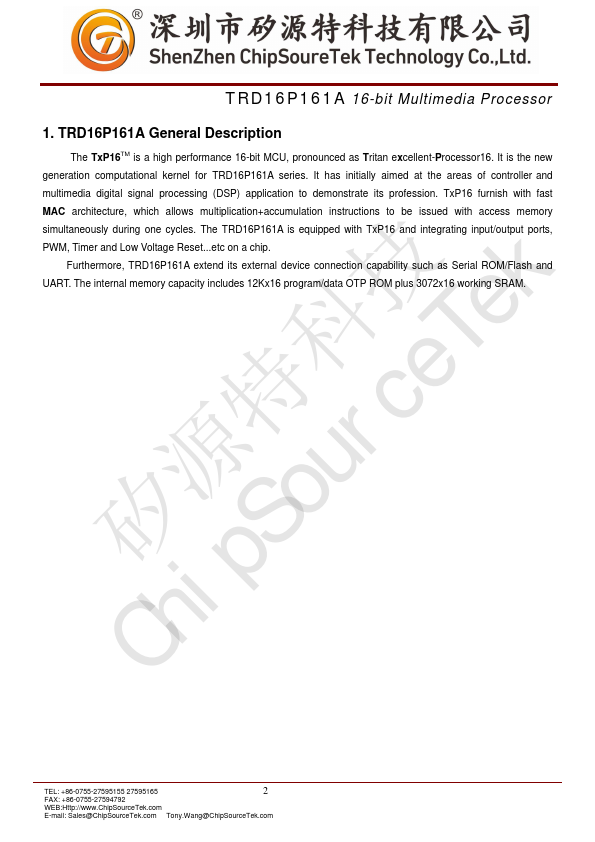

Description The Tx P16TM is a high performance 16-bit MCU, pronounced as Tritan excellent-Processor16. It is the new generation putational kernel for TRD16P161A series. It has initially aimed at the areas of controller and multimedia digital signal processing (DSP) application to demonstrate its profession. Tx P16 furnish with fast MAC architecture, which allows multiplication+accumulation instructions to be issued with access memory simultaneously during one cycles. The TRD16P161A is equipped with Tx P16 and integrating input/output ports, PWM, Timer and Low Voltage Reset...etc on a chip. Furthermore, TRD16P161A extend its external device connection capability such as Serial ROM/Flash and 矽Ch源ip特So科ur技ce Tek UART. The internal memory capacity includes 12Kx16 program/data OTP ROM plus 3072x16 working SRAM. TEL: +86-0755-27595155 27595165 FAX: +86-0755-27594792 WEB:Http://.Chip Source Tek. E-mail: Sales@Chip Source Tek. Tony.Wang@Chip Source Tek. TRD16P161A 16-bit Multimedia Processor 2. TRD16P161A Features - High-performance RISC Tx P16 CPU ‧ 13Mhz@2.4Volt ~ 5.5Volt , 11Mhz@2.4Volt ~ 5.5Volt or 6.5Mhz@2.4Volt ~ 5.5Volt ‧ Built-in 3072x16 SRAM ‧ Hybrid Instruction and data memory share with 12Kx16 OTP ROM ‧ Embedded PC Stack Level 16 - Rich DSP function ‧ Hardware Circular Buffer support ‧ MAC putation power : 13MIPS (max.) ‧ Multi-Function Support: In MAC calculation, simultaneously access two operands from memory in one cycle ‧ Extend Dynamic Range: A 40-bit accumulator to ensure in 512 successive multiple+additions no overflows - Software-based audio processing technical 技 k ‧ADPCM , CELP , Melody synthesis up to 12channels ( Max ) - System Clock : RC oscillator 65.536MHz±1% e - Support 24 general purpose I/O port - Stereo 16-bit PWM - Advanced Interrupt System 科 T ‧ 6 internal interrupt (PWM, T1, T2, RTC, SPI, Stack Ovl) ‧ 3 external interrupt e ‧ FIRQ - Built-in UART/IR - SPI Master Interface 特 c - Timer1 , Timer2 with External I/O Pin Trigger - Support Spread...
