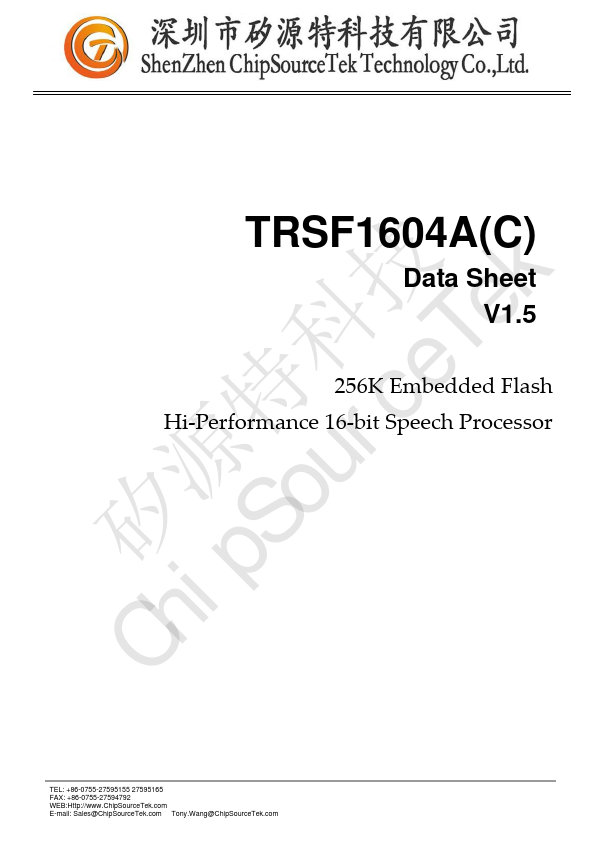

ChipSourceTek TRSF1604A
The TRSF1604A(C) is equipped with TxP16S2 and integrating input/output ports, Audio PWM/DAC, Timer and Low Voltage Reset...etc on a chip. The 矽Ch源ip特So科ur技ceTek internal memory capacity includes 256Kx16 program/data FLASH plus 4Kx16 working SRAM.| Part No. | TRSF1604A |
|---|---|
| Datasheet | TRSF1604A Download |
| Manufacturer |  ChipSourceTek |
| Description | Hi-Performance 16-bit Speech Processor |
| Buy | Stock & Price |
GENERAL DESCRIPTION
The TxP16S2TM is a high performance 16-bit MCU, running up to 32MHz and provided with 256K FLASH and total 4K SRAM for high performance process of audio algorithm. It is the new generation computational kernel for Flash Speech series. It has initially aimed at the areas of speech application to demonstrate its profession. TxP16S2 furnish with a fast unit, which allows calculation instructions to be issued with access memory simultaneously during one cycle. Furthermore, TRSF1604A(C) extend its external device connection capability such as Serial ROM/Flash. TEL: +86-0755-27595155 27595165 2 FAX: +86-0755-27594792 WEB: E-mail: Sales@ChipSourceTek.com Tony.Wang@ChipSourceTek.com TRSF1604A(C)16-bit Speech Processor 2. TRSF1604A(C)FEATURES
● Notice: TRSF1604C only supports SOP16-3 and SSOP24-2 packages.● Notice: TRSF1604A(C) do not support ultra-deep sleep.
● Notice: PortC2 are forbidden to be connected with VCC or pull-up resistance. Notice: TRSF1604A(C) does not support buzzer and speaker wake up, so MISC1 bit10, MISC2 bit 12
● and MISC2 bit14 should be set to 0.
