TRSF4A030B Datasheet PDF

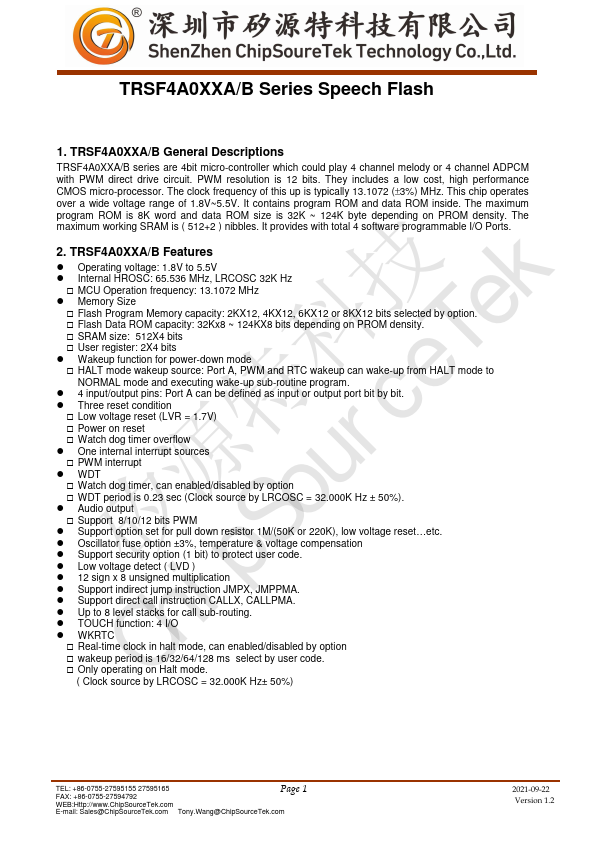

FEATURES

● Operating voltage: 1.8V to 5.5V
● Internal HROSC: 65.536 MHz, LRCOSC 32K Hz  MCU Operation frequency: 13.1072 MHz
● Memory Size  Flash Program Memory capacity: 2KX12, 4KX12, 6KX12 or 8KX12 bits selected by option.  Flash Data ROM capacity: 32Kx8 ~ 124KX8 bits depending on PROM density.  SRAM size: 512X4 bits  User register: 2X4 bits
● Wakeup function for power-down mode  HALT mode wakeup source: Port A, PWM and RTC wakeup can wake-up from HALT mode to NORMAL mode and executing wake-up sub-routine program.
● 4 input/output pins: Port A can be defined as input or output port bit by bit.
● Three reset condition  Low voltage reset (LVR = 1.7V)  Power on reset  Watch dog timer overflow
● One internal interrupt sources  PWM interrupt
● WDT  Watch dog timer, can enabled/disabled by option  WDT period is 0.23 sec (Clock source by LRCOSC = 32.000K Hz ± 50%).
● Audio output  Support 8/10/12 bits PWM
● Support option set for pull down resistor 1M/(50K or 220K), low voltage reset…etc.
