CA-IS1311G - Reinforced Isolated Amplifier

Description

The CA-IS1311 devices are high-precision reinforced isolated amplifiers and optimized for voltage sensing.

Low offset and gain error and drift guarantee that measuring accuracy is maintained over the entire operating temperature range.

Features

  • Input Voltage Range:.
  • 0.1 V to 2 V.
  • High Input Impedance: 1 GΩ (typ).
  • Fixed Initial Gain: 1.
  • Low Input Offset and Drift: ±1.5 mV (max) at 25°C, ±15 μV/°C (max).
  • Low Gain Error and Drift: ±0.3% (max) at 25°C, ±40 ppm/°C (max).
  • 3.3-V or 5-V Operation for Both High- and Low-Side.
  • Wide Operating Temperature Range:.
  • 40°C to 125°C.
  • High CMTI: ±150 kV/µs (typ, CA-IS1311BG).
  • Safety-Related Certifications.

📥 Download Datasheet

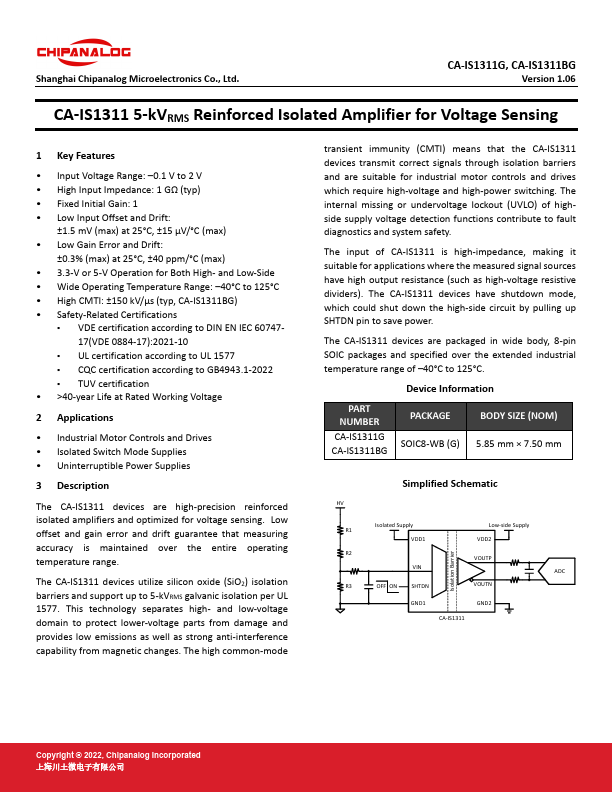

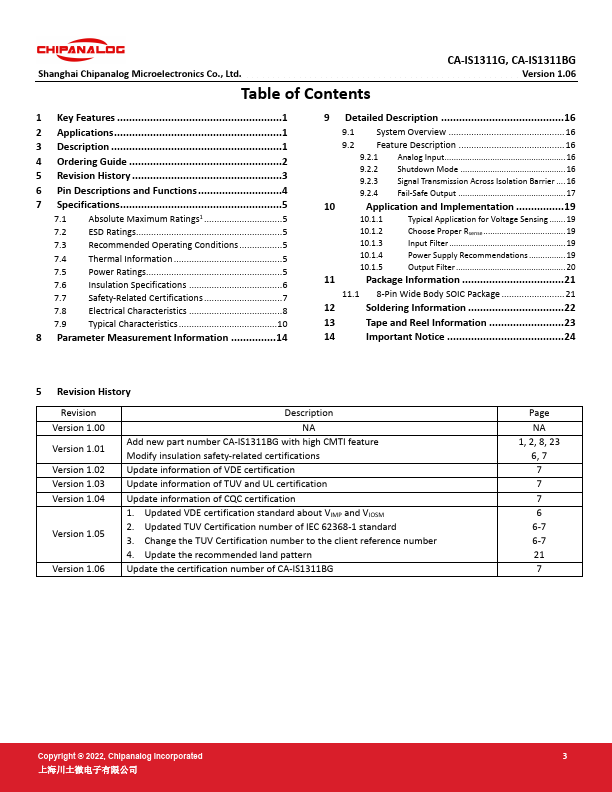

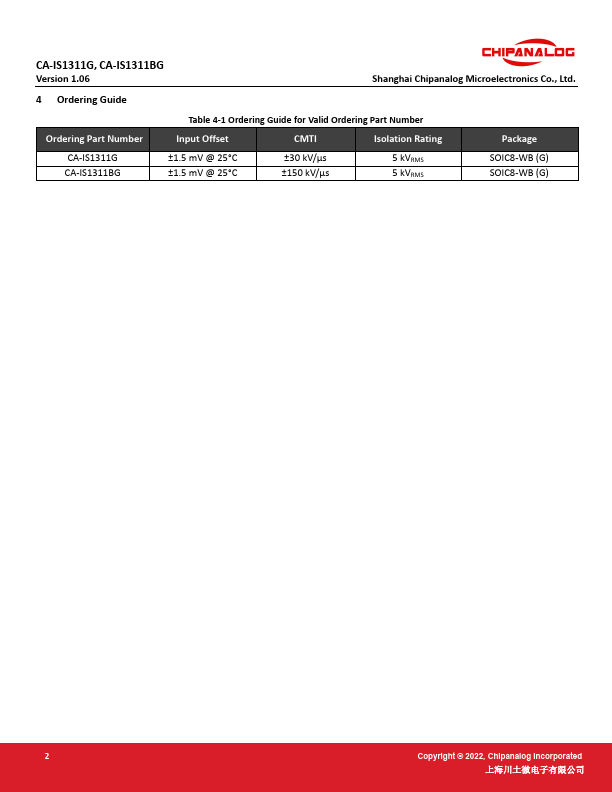

Datasheet preview – CA-IS1311G
