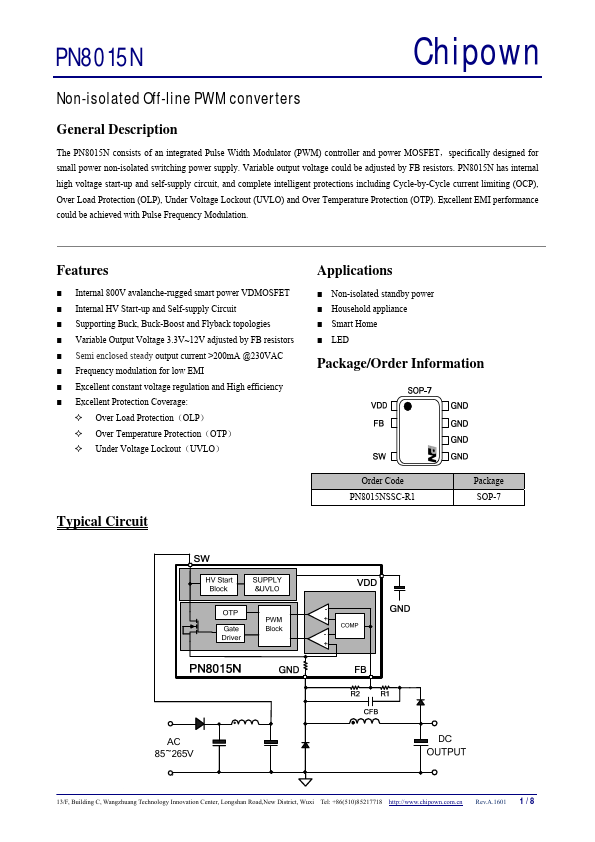

PN8015N Description
The PN8015N consists of an integrated Pulse Width Modulator (PWM) controller and power MOSFET，specifically designed for small power non-isolated switching power supply. Variable output voltage could be adjusted by FB resistors. PN8015N has internal high voltage start-up and self-supply circuit, and plete intelligent protections including Cycle-by-Cycle current limiting (OCP), Over Load Protection (OLP), Under...
PN8015N Key Features
- Internal 800V avalanche-rugged smart power VDMOSFET
- Internal HV Start-up and Self-supply Circuit
- Supporting Buck, Buck-Boost and Flyback topologies
- Variable Output Voltage 3.3V~12V adjusted by FB resistors
- Semi enclosed steady output current >200mA @230VAC
- Frequency modulation for low EMI
- Excellent constant voltage regulation and High efficiency
- Excellent Protection Coverage
