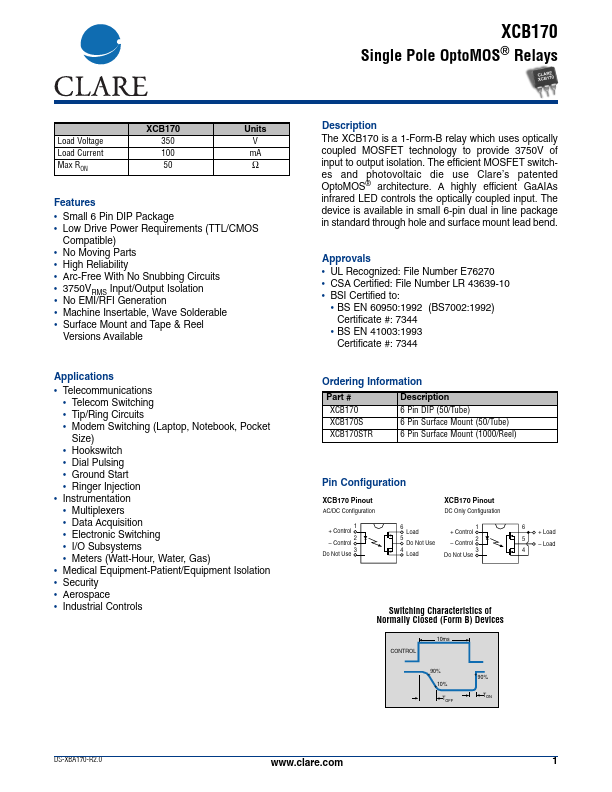

Clare XCB170
The XCB170 is a 1-Form-B relay which uses optically coupled MOSFET technology to provide 3750V of input to output isolation. The efficient MOSFET switches and photovoltaic die use Clare’s patented OptoMOS® architecture. The device is available in small 6-pin dual in line package in standard through hole and surface mount lead bend.| Part No. | XCB170 |
|---|---|
| Datasheet | XCB170 Download |
| Manufacturer |  Clare |
| Description | Single Pole OptoMOS Relays |
| Buy | Stock & Price |
FEATURES
● Small 6 Pin DIP Package● Low Drive Power Requirements (TTL/CMOS Compatible)
● No Moving Parts
● High Reliability
● Arc-Free With No Snubbing Circuits
● 3750VRMS Input/Output Isolation
● No EMI/RFI Generation
● Machine Insertable, Wave Solderable
● Surface Mount and Tape & Reel Versions Available
APPLICATIONS
● Telecommunications● Telecom Switching
● Tip/Ring Circuits
● Modem Switching (Laptop, Notebook, Pocket Size)
● Hookswitch
● Dial Pulsing
● Ground Start
● Ringer Injection
● Instrumentation
● Multiplexers
● Data Acquisition
● Electronic Switching
● I/O Subsystems
● Meters (Watt-Hour, Water, Gas)
● Medical Equipment-Patient/Equipment Isolation
● Security
● Aerospace
● Industrial Controls
DESCRIPTION
A highly efficient GaAIAs infrared LED controls the optically coupled input. Approvals● UL Recognized: File Number E76270
● CSA Certified: File Number LR 43639-10
● BSI Certified to:
● BS EN 60950:1992 (BS7002:1992) Certificate #: 7344
● BS EN 41003:1993 Certificate #: 7344...
