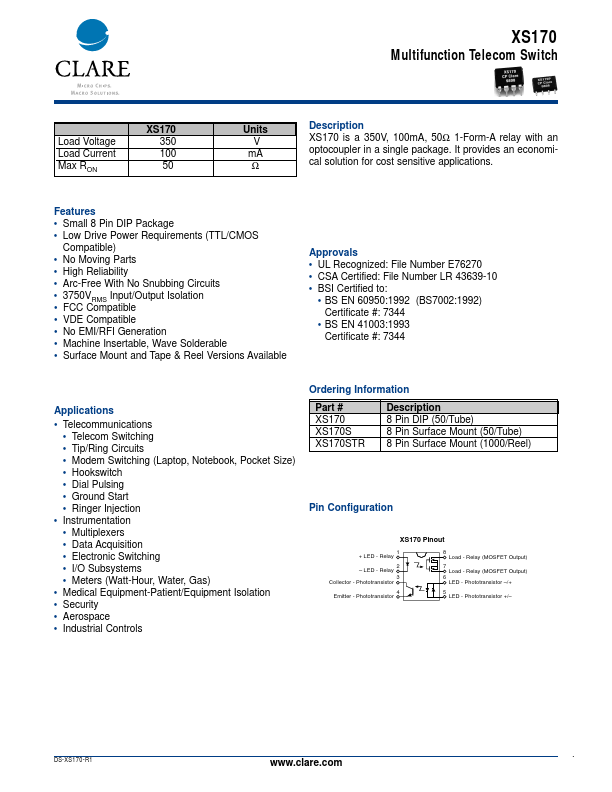

XS170
XS170 is Multifunction Telecom Switch manufactured by Clare.
Description
XS170 is a 350V, 100m A, 50Ω 1-Form-A relay with an optocoupler in a single package. It provides an economical solution for cost sensitive applications.
Features
- Small 8 Pin DIP Package
- Low Drive Power Requirements (TTL/CMOS patible)
- No Moving Parts
- High Reliability
- Arc-Free With No Snubbing Circuits
- 3750VRMS Input/Output Isolation
- FCC patible
- VDE patible
- No EMI/RFI Generation
- Machine Insertable, Wave Solderable
- Surface Mount and Tape & Reel Versions Available
Approvals
- UL Recognized: File Number E76270
- CSA Certified: File Number LR 43639-10
- BSI Certified to:
- BS EN 60950:1992 (BS7002:1992) Certificate #: 7344
- BS EN 41003:1993 Certificate #: 7344
Applications
- Telemunications
- Tele Switching
- Tip/Ring Circuits
- Modem Switching (Laptop, Notebook, Pocket Size)
- Hookswitch
- Dial Pulsing
- Ground Start
- Ringer Injection
- Instrumentation
- Multiplexers
- Data Acquisition
- Electronic Switching
- I/O Subsystems
- Meters (Watt-Hour, Water, Gas)
- Medical Equipment-Patient/Equipment Isolation
- Security
- Aerospace
- Industrial Controls
Ordering...
