Document 713-1
Coupled Inductors –
LPR4012
For Step-Up, Resonant & Flyback Applications
Halogen Free
AEC
Q200 +85°C
• Miniature, shielded coupled inductors are only 1,1 mm high and 4 mm square
• Excellent coupling coefficient (k = 0.95) makes them ideal for use as flyback transformers in DC-DC converters or as coupled inductors in buck regulators to provide multiple outputs
• 100 Vrms, one minute isolation (hipot) between windings
• Wide selection of turns ratios makes them suitable for a variety of voltage step-up and step-down applications
• Can also be used in autotransformer applications.

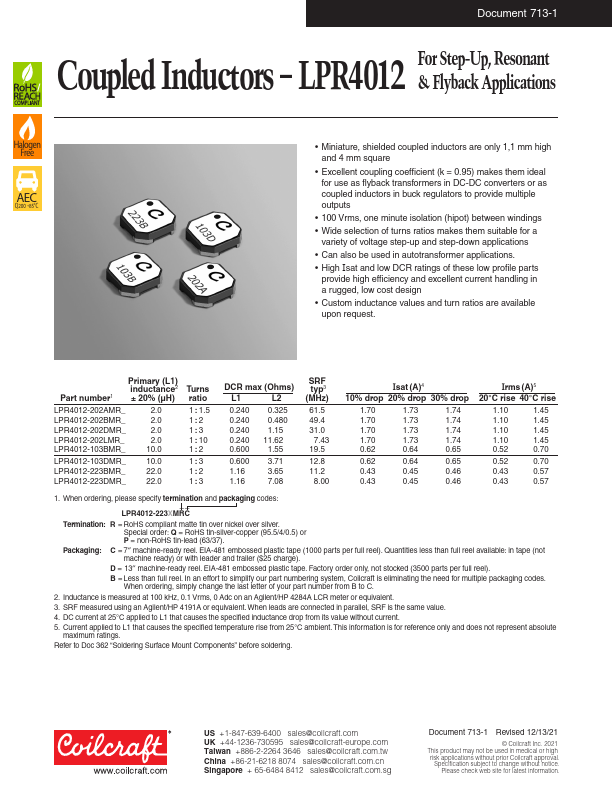

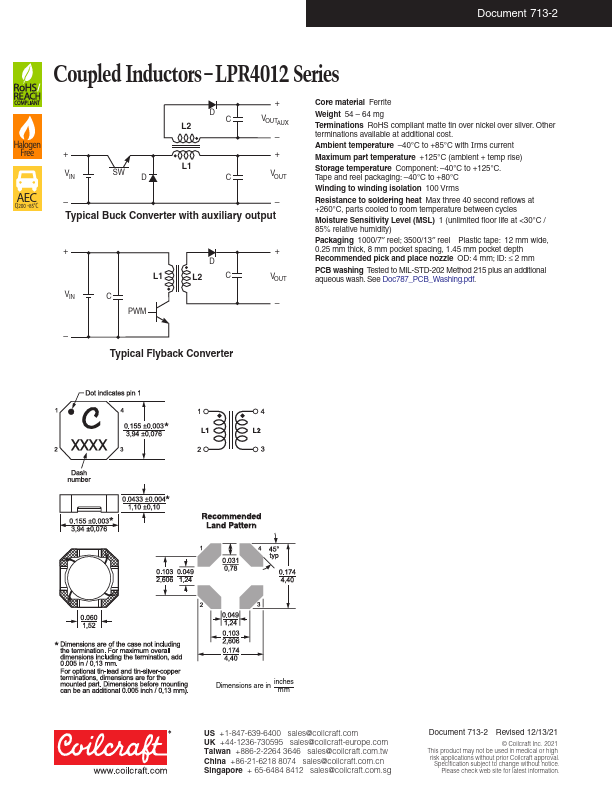

LPR4012 Datasheet
