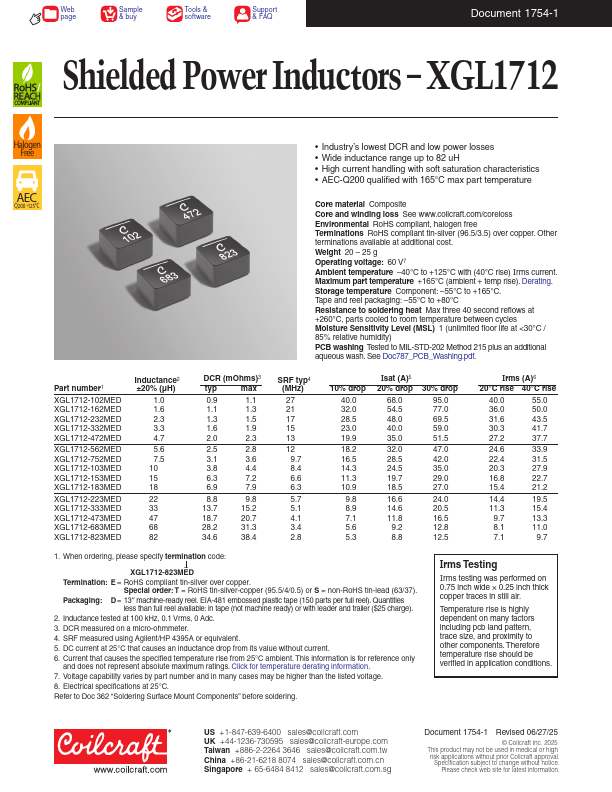

Document 1754-1
Shielded Power Inductors
- XGL1712
Halogen Free
AEC
Q200 +125°C
- Industry’s lowest DCR and low power losses
- Wide inductance range up to 82 uH
- High current handling with soft saturation characteristics
- AEC-Q200 qualified with 165°C max part temperature
Core material posite Core and winding loss See .coilcraft./coreloss Environmental RoHS pliant, halogen free Terminations RoHS pliant tin-silver (96.5/3.5) over copper. Other terminations available at additional cost. Weight 20
- 25 g Operating voltage: 60 V7 Ambient temperature
- 40°C to +125°C with (40°C rise) Irms current. Maximum part...
