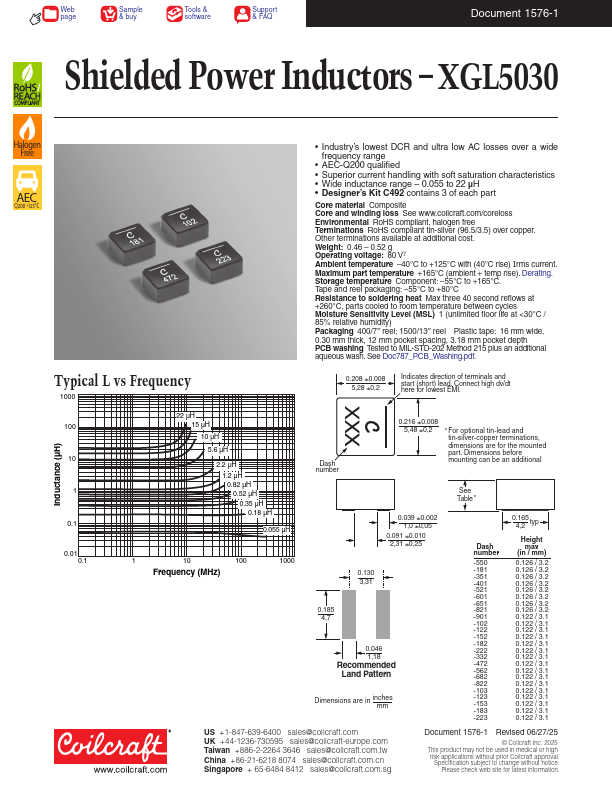

Document 1576-1
Shielded Power Inductors
- XGL5030
Halogen Free
AEC
Q200 +125°C
- Industry’s lowest DCR and ultra low AC losses over a wide frequency range
- AEC-Q200 qualified
- Superior current handling with soft saturation characteristics
- Wide inductance range
- 0.055 to 22 µH
- Designer’s Kit C492 contains 3 of each part
Core material posite Core and winding loss See .coilcraft./coreloss Environmental RoHS pliant, halogen free Terminations RoHS pliant tin-silver (96.5/3.5) over copper. Other terminations available at additional cost. Weight: 0.46
- 0.52 g Operating voltage: 80 V7 Ambient temperature
-...
