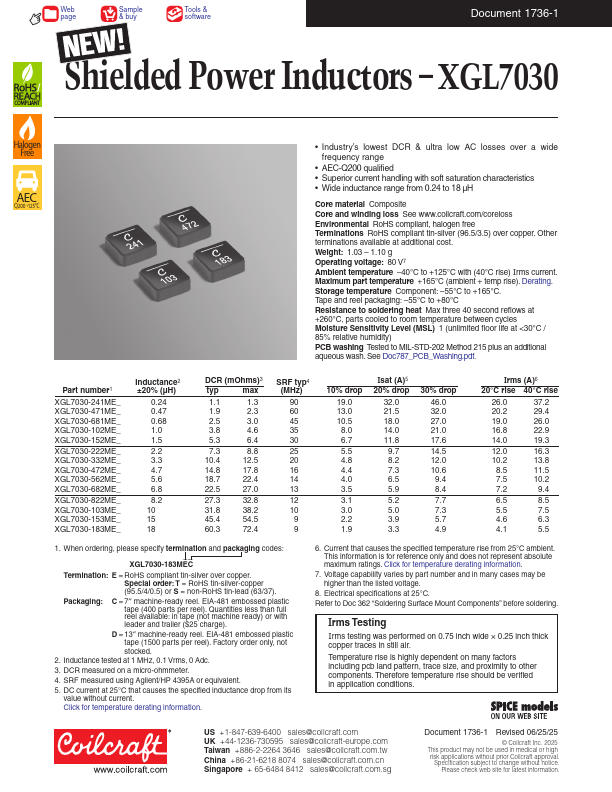

Document 1736-1
Shielded Power Inductors
- XGL7030
Halogen Free
AEC
Q200 +125°C
- Industry’s lowest DCR & ultra low AC losses over a wide frequency range
- AEC-Q200 qualified
- Superior current handling with soft saturation characteristics
- Wide inductance range from 0.24 to 18 µH
Core material posite Core and winding loss See .coilcraft./coreloss Environmental RoHS pliant, halogen free Terminations RoHS pliant tin-silver (96.5/3.5) over copper. Other terminations available at additional cost. Weight: 1.03
- 1.10 g Operating voltage: 80 V7 Ambient temperature
- 40°C to +125°C with (40°C rise) Irms current. Maximum part...
