BAS21W Datasheet | Comchip Technology

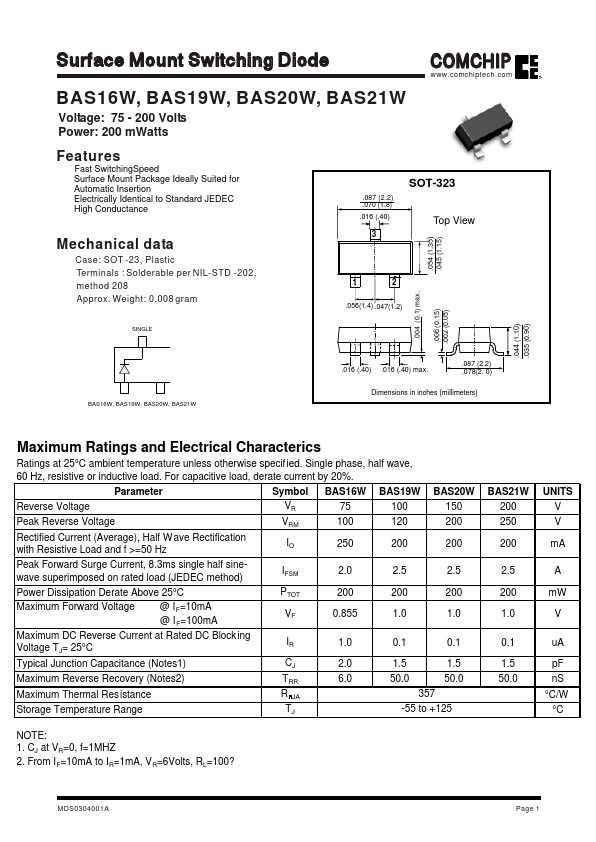

Features Fast Switching Speed Surface Mount Package Ideally Suited for Automatic Insertion Electrically Identical to Standard JEDEC High Conductance Mechanical data Case: SOT -23, Plastic Terminals : Solderable per NIL-STD -202, method 208 Approx. Weight: 0.008 gram .087 (2.2) .070 (1.8) .016 (.40) SOT-323 Top View .054 (1.35) .045 (1.15) .056(1.4) .047(1.2) SINGLE .004 (0.1) max. .006 (0.15) .002 (0.05) BAS16W, BAS19W, BAS20W, BAS21W .016 (.40) .016 (.40) max. .087 (2.2) .078(2. 0) Dimensions in inches (millimeters) .044 (1.10) .035 (0.90) Maximum Ratings and Electrical Characterics Ratings at 25°C ambient temperature unless otherwise specif ied. Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load, derate current by 20%. Parameter Symbol BAS16W BAS19W BAS20W Reverse Voltage Peak Reverse Voltage Rectified Current (Average), Half W ave Rectification with Resistive Load and f >=50 Hz Peak Forward Surge Current, 8.3ms single half sinewave superimposed on rated load (JEDEC method) IFSM Power Dissipation Derate Above 25°C Maximum Forward Voltage @ IF=10m A @ IF=100m A Maximum DC Reverse Current at Rated DC Block ing Voltage TJ=...
