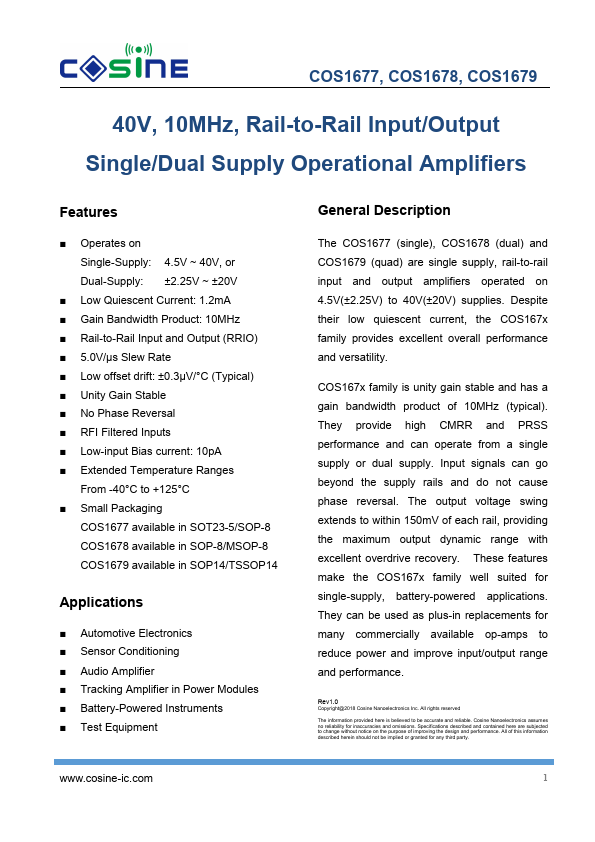

Cosine COS1679
The COS1677 (single), COS1678 (dual) and COS1679 (quad) are single supply, rail-to-rail input and output amplifiers operated on 4.5V(±2.25V) to 40V(±20V) supplies. They provide high CMRR and PRSS performance and can operate from a single supply or dual supply.| Part No. | COS1679 |
|---|---|
| Datasheet | COS1679 Download |
| Manufacturer | Cosine |
| Description | Single/Dual Supply Operational Amplifiers |
| Buy | Stock & Price |
FEATURES
● Operates on Single-Supply: 4.5V ~ 40V, or Dual-Supply: ±2.25V ~ ±20V● Low Quiescent Current: 1.2mA
● Gain Bandwidth Product: 10MHz
● Rail-to-Rail Input and Output (RRIO)
● 5.0V/µs Slew Rate
● Low offset drift: ±0.3μV/°C (Typical)
● Unity Gain Stable
● No Phase Reversal
● RFI Filtered Inputs
● Low-input Bias current: 10pA
● Extended Temperature Ranges From -40°C to +125°C

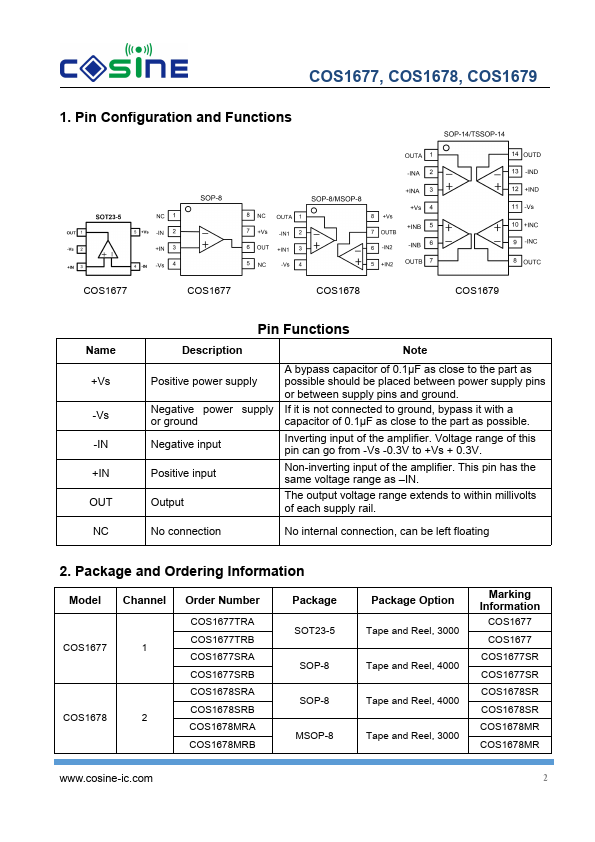

● Small Packaging COS1677 available in SOT23-5/SOP-8 COS1678 available in SOP-8/MSOP-8 COS1679 available in SOP14/TSSOP14
APPLICATIONS
● Automotive Electronics● Sensor Conditioning
● Audio Amplifier
● Tracking Amplifier in Power Modules
● Battery-Powered Instruments
● Test Equipment
GENERAL DESCRIPTION
Despite their low quiescent current, the COS167x family provides excellent overall performance and versatility. COS167x family is unity gain stable and has a gain bandwidth product of 10MHz (typical). Input signals can go beyond the supply rails and do not cause phase reversal. The output voltage swing extends to within 150mV of each rail, providing the maximum output dynamic range with excellent overdrive recovery.
