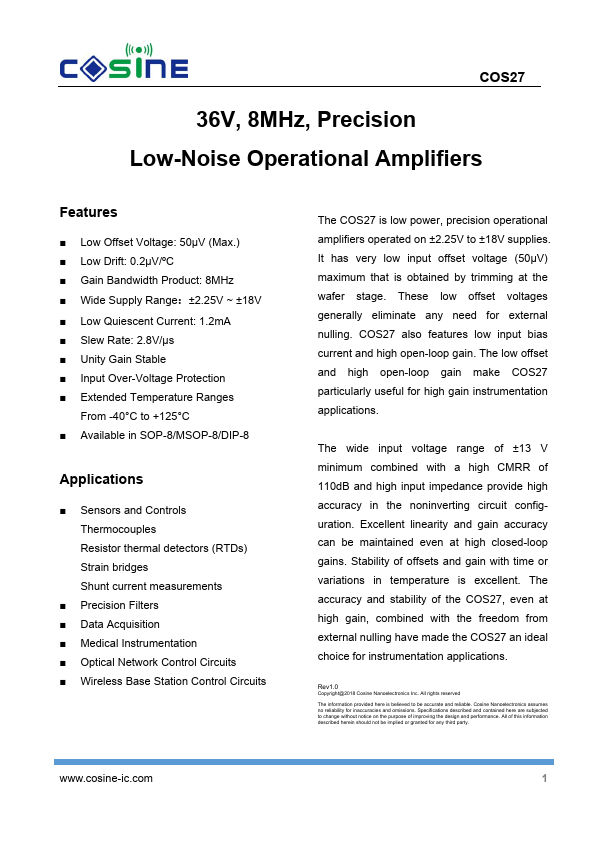

Cosine COS27
The COS27 is low power, precision operational amplifiers operated on ±2.25V to ±18V supplies. It has very low input offset voltage (50μV) maximum that is obtained by trimming at the wafer stage. These low offset voltages generally eliminate any need for external nulling.| Part No. | COS27 |
|---|---|
| Datasheet | COS27 Download |
| Manufacturer | Cosine |
| Description | Low-Noise Operational Amplifiers |
| Buy | Stock & Price |
FEATURES
● Low Offset Voltage: 50µV (Max.)● Low Drift: 0.2µV/ºC
● Gain Bandwidth Product: 8MHz
● Wide Supply Range：±2.25V ~ ±18V
● Low Quiescent Current: 1.2mA
● Slew Rate: 2.8V/µs
● Unity Gain Stable
● Input Over-Voltage Protection
● Extended Temperature Ranges From -40°C to +125°C
● Available in SOP-8/MSOP-8/DIP-8
APPLICATIONS
● Sensors and Controls Thermocouples Resistor thermal detectors (RTDs) Strain bridges Shunt current measurements● Precision Filters
● Data Acquisition
● Medical Instrumentation
● Optical Network Control Circuits
● Wireless Base Station Control Circuits
GENERAL DESCRIPTION
COS27 also features low input bias current and high open-loop gain. The low offset and high open-loop gain make COS27 particularly useful for high gain instrumentation applications. The wide input voltage range of ±13 V minimum combined with a high CMRR of 110dB and high input impedance provide high accuracy in the noninverting circuit configuration. Excellent linearity and gain accuracy can be maintained even at high closed-loop gains.
