Cosine COS321HV
The COS321HV (single), COS358HV (dual) and COS324HV (quad) are low-power, low cost operational amplifiers (op amps) operated on 3V to 30V supplies. They have high differential input voltage capability. The common-mode input voltage range includes ground, enabling direct sensing near ground.| Part No. | COS321HV |
|---|---|
| Datasheet | COS321HV Download |
| Manufacturer | Cosine |
| Description | High Voltage Operational Amplifiers |
| Buy | Stock & Price |
FEATURES
● Wide Supply Range of 3V ~ 30V● Large DC Voltage Gain: 100dB
● Quiescent Current per Amplifier: 250μA
● Gain Bandwidth Product: 1.0 MHz
● Slew Rate: 0.35V/µs
● Unity Gain Stable
● Input Common-mode Voltage Range Includes negative Rails
● Differential Input Voltage Range Equal to the Power Supply Voltage

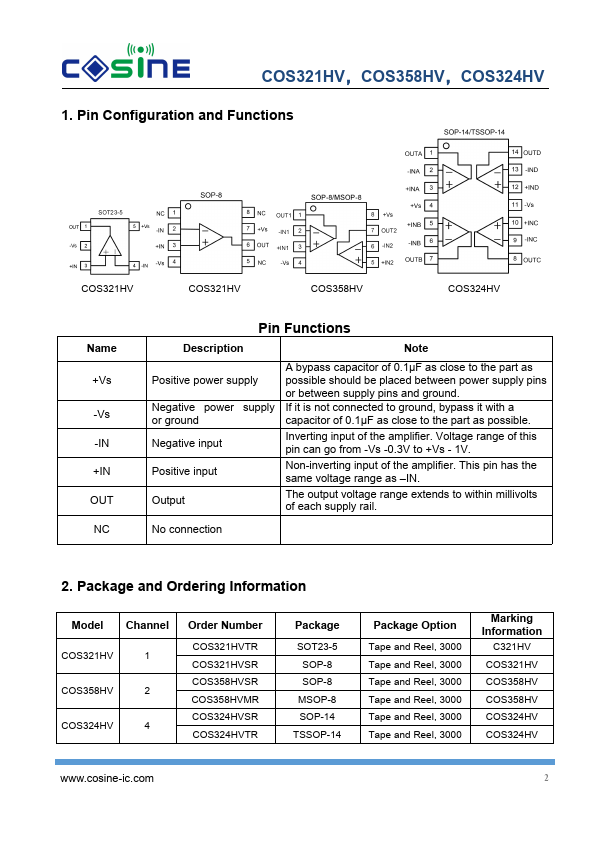

● Packaging Available COS321HV available in SOT23-5/SOP8 COS358HV available in SOP8/MSOP8 COS324HV available in SOP14/TSSOP14
APPLICATIONS
● Power Supplies and Mobile Chargers● Motor Control
● AC Inverters
● White Goods
● Battery or Solar Powered Systems
GENERAL DESCRIPTION
Despite their wide supply range, the COS358HV family provides excellent overall performance and versatility. The COS358HV family is unity gain stable and has a gain bandwidth product of 1.1MHz (typical). They provide high CMRR and PSRR performance and can operate from a single supply voltage as well as dual supply voltages. The COS358HV family can be designed into a wide range of applications at an economical price without sacrificing basic performance.
