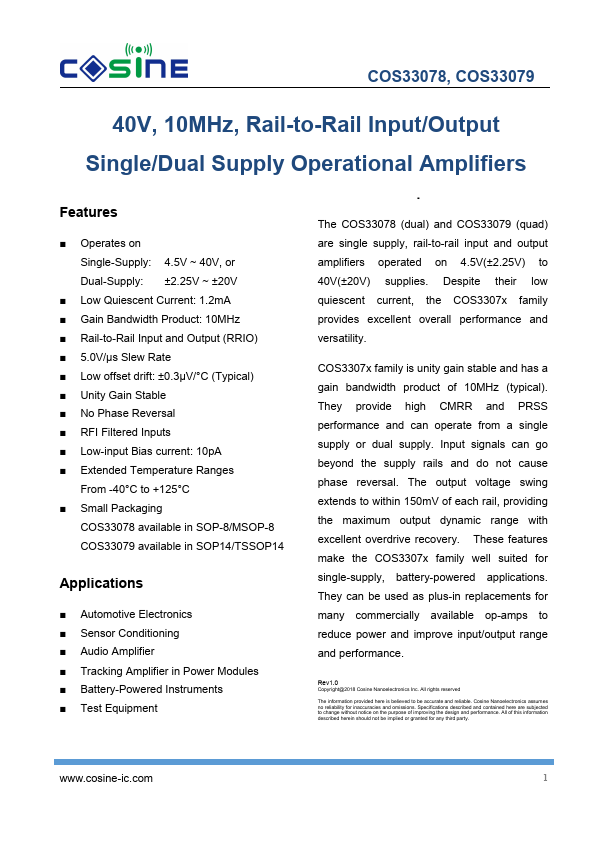

COS33078 Overview
The COS33078 (dual) and COS33079 (quad) are single supply, rail-to-rail input and output amplifiers operated on 4.5V(±2.25V) to 40V(±20V) supplies. Despite their low quiescent current, the COS3307x family provides excellent overall performance and versatility. COS3307x family is unity gain stable and has a gain bandwidth product of 10MHz (typical).
COS33078 Key Features
- Operates on Single-Supply: 4.5V ~ 40V, or Dual-Supply: ±2.25V ~ ±20V
- Low Quiescent Current: 1.2mA
- Gain Bandwidth Product: 10MHz
- Rail-to-Rail Input and Output (RRIO)
- 5.0V/µs Slew Rate
- Low offset drift: ±0.3μV/°C (Typical)
- Unity Gain Stable
- No Phase Reversal
- RFI Filtered Inputs
- Low-input Bias current: 10pA
