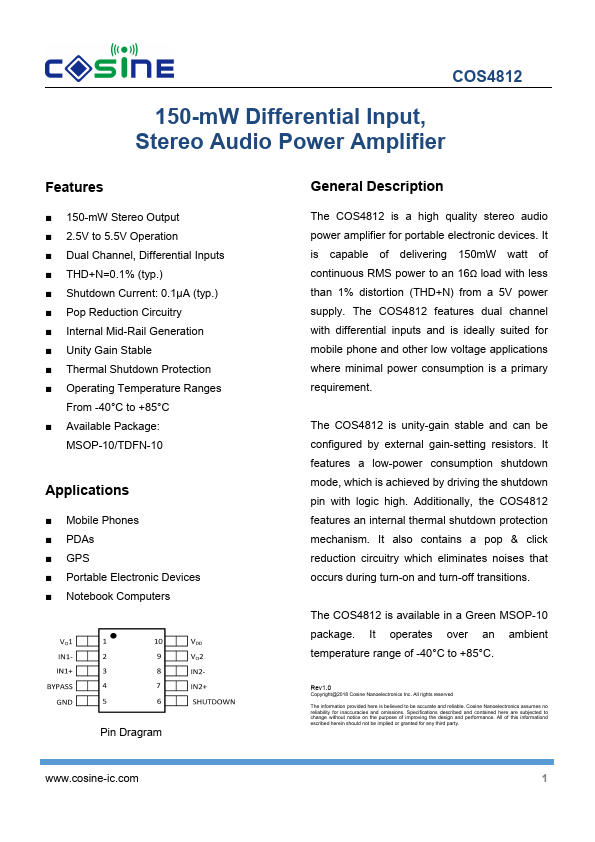

Cosine COS4812
The COS4812 is a high quality stereo audio power amplifier for portable electronic devices. It is capable of delivering 150mW watt of continuous RMS power to an 16Ω load with less than 1% distortion (THD+N) from a 5V power supply. The COS4812 features dual channel with differential inputs and is ideally suited for mobile phone and other low voltage applications where minimal power consumption is a primary requirement.| Part No. | COS4812 |
|---|---|
| Datasheet | COS4812 Download |
| Manufacturer | Cosine |
| Description | Stereo Audio Power Amplifier |
| Buy | Stock & Price |
FEATURES
● 150-mW Stereo Output● 2.5V to 5.5V Operation
● Dual Channel, Differential Inputs
● THD+N=0.1% (typ.)
● Shutdown Current: 0.1µA (typ.)
● Pop Reduction Circuitry
● Internal Mid-Rail Generation
● Unity Gain Stable
● Thermal Shutdown Protection
● Operating Temperature Ranges From -40°C to +85°C
● Available Package: MSOP-10/TDFN-10
APPLICATIONS
● Mobile Phones● PDAs
● GPS
● Portable Electronic Devices

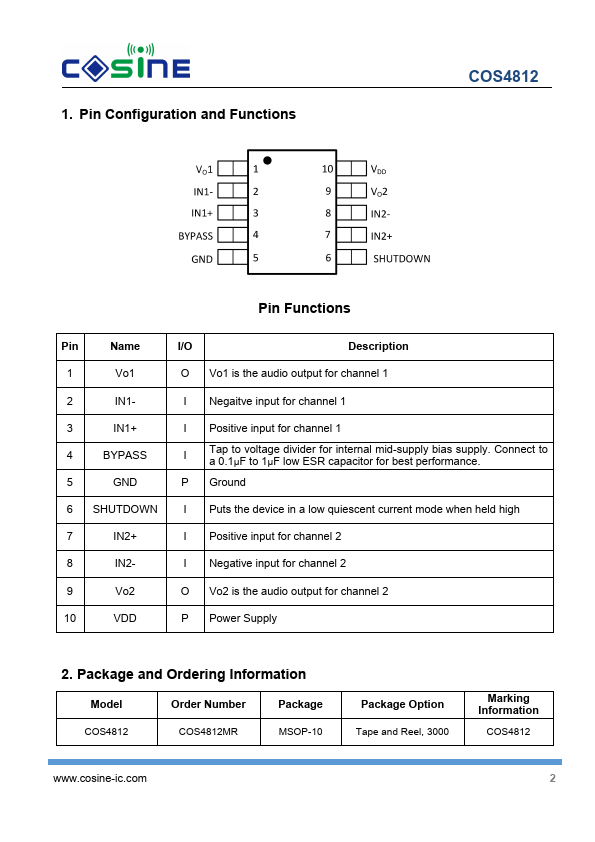

● Notebook Computers Pin Dragram
GENERAL DESCRIPTION
The COS4812 is unity-gain stable and can be configured by external gain-setting resistors. It features a low-power consumption shutdown mode, which is achieved by driving the shutdown pin with logic high. Additionally, the COS4812 features an internal thermal shutdown protection mechanism. It also contains a pop & click reduction circuitry which eliminates noises that occurs during turn-on and turn-off transitions. The COS4812 is available in a Green MSOP-10 package. It operates over an ambient temperature range of -40°C to +85°C.
