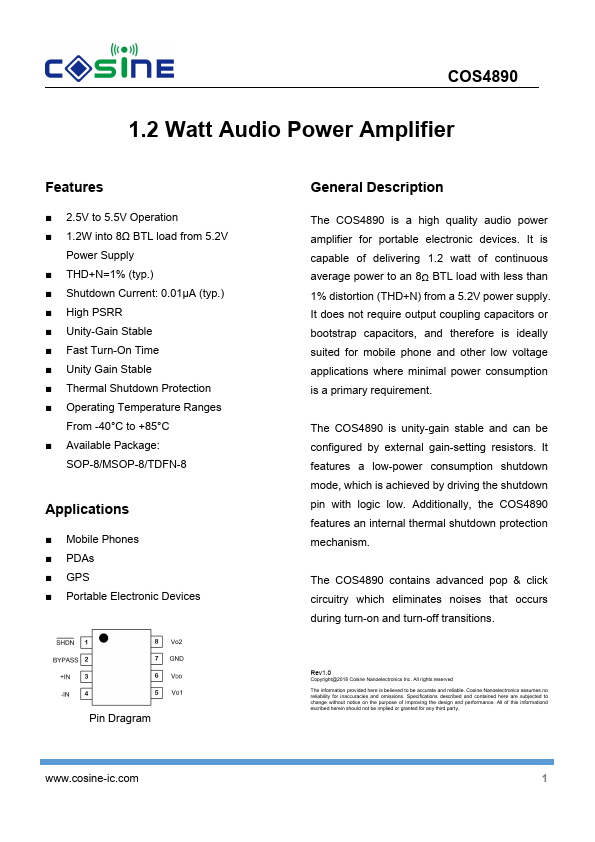

Cosine COS4890
The COS4890 is a high quality audio power amplifier for portable electronic devices. It is capable of delivering 1.2 watt of continuous average power to an 8Ω BTL load with less than 1% distortion (THD+N) from a 5.2V power supply. It does not require output coupling capacitors or bootstrap capacitors, and therefore is ideally suited for mobile phone and other low voltage applications where minimal power consumption is a primary requirement.| Part No. | COS4890 |
|---|---|
| Datasheet | COS4890 Download |
| Manufacturer | Cosine |
| Description | 1.2 Watt Audio Power Amplifier |
| Buy | Stock & Price |
FEATURES
● 2.5V to 5.5V Operation● 1.2W into 8Ω BTL load from 5.2V Power Supply
● THD+N=1% (typ.)
● Shutdown Current: 0.01µA (typ.)
● High PSRR
● Unity-Gain Stable
● Fast Turn-On Time
● Unity Gain Stable
● Thermal Shutdown Protection
● Operating Temperature Ranges From -40°C to +85°C
● Available Package: SOP-8/MSOP-8/TDFN-8
APPLICATIONS
● Mobile Phones● PDAs
● GPS
● Portable Electronic Devices
GENERAL DESCRIPTION
The COS4890 is unity-gain stable and can be configured by external gain-setting resistors. It features a low-power consumption shutdown mode, which is achieved by driving the shutdown pin with logic low. Additionally, the COS4890 features an internal thermal shutdown protection mechanism. The COS4890 contains advanced pop & click circuitry which eliminates noises that occurs during turn-on and turn-off transitions. Pin Dragram Rev1.0 Copyright@2018 Cosine Nanoelectronics Inc. All rights reserved The information provided here is believed to be accurate and reliable. Cosine Nanoelectronics assumes no reliability for inaccuracies and omissions.
