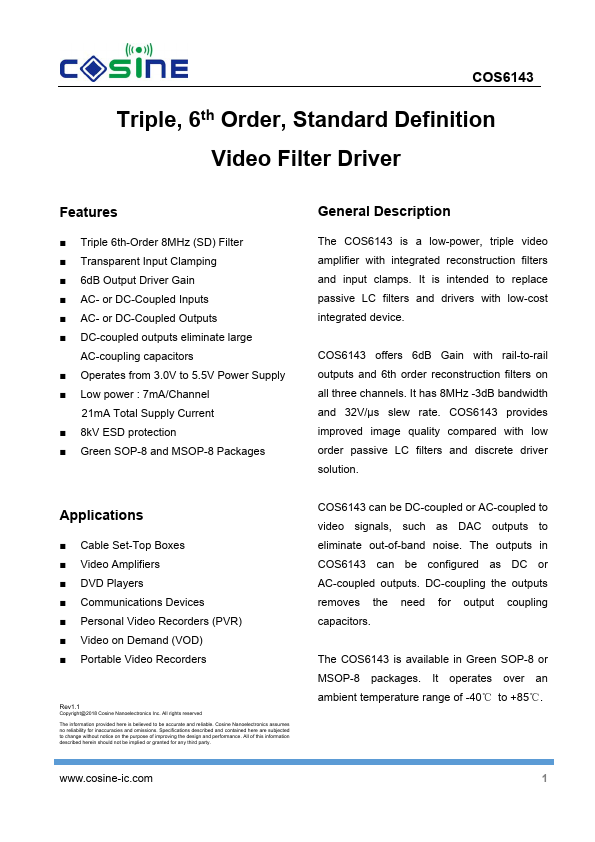

Datasheet Summary
Triple, 6th Order, Standard Definition Video Filter Driver
Features
- Triple 6th-Order 8MHz (SD) Filter
- Transparent Input Clamping
- 6dB Output Driver Gain
- AC- or DC-Coupled Inputs
- AC- or DC-Coupled Outputs
- DC-coupled outputs eliminate large
AC-coupling capacitors
- Operates from 3.0V to 5.5V Power Supply
- Low power : 7mA/Channel
21mA Total Supply Current
- 8kV ESD protection
- Green SOP-8 and MSOP-8 Packages
General Description
The COS6143 is a low-power, triple video amplifier with integrated reconstruction filters and input clamps. It is intended to replace passive LC filters and drivers with low-cost integrated device.
COS6143 offers 6dB Gain with rail-to-rail...
