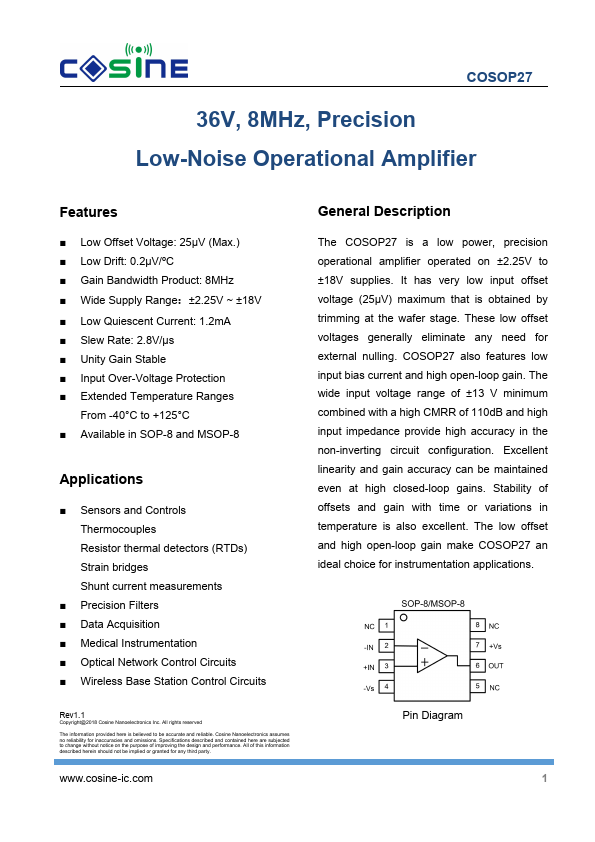

Cosine COSOP27
The COSOP27 is a low power, precision operational amplifier operated on ±2.25V to ±18V supplies. It has very low input offset voltage (25μV) maximum that is obtained by trimming at the wafer stage. These low offset voltages generally eliminate any need for external nulling.| Part No. | COSOP27 |
|---|---|
| Datasheet | COSOP27 Download |
| Manufacturer | Cosine |
| Description | Low-Noise Operational Amplifier |
| Buy | Stock & Price |
FEATURES
● Low Offset Voltage: 25µV (Max.)● Low Drift: 0.2µV/ºC
● Gain Bandwidth Product: 8MHz
● Wide Supply Range：±2.25V ~ ±18V
● Low Quiescent Current: 1.2mA
● Slew Rate: 2.8V/µs
● Unity Gain Stable
● Input Over-Voltage Protection
● Extended Temperature Ranges From -40°C to +125°C
● Available in SOP-8 and MSOP-8
APPLICATIONS
● Sensors and Controls Thermocouples Resistor thermal detectors (RTDs) Strain bridges Shunt current measurements● Precision Filters
● Data Acquisition
● Medical Instrumentation
● Optical Network Control Circuits
● Wireless Base Station Control Circuits Rev1.1 Copyright@2018 Cosine Nanoelectronics Inc. All rights reserved The information provided here is believed to be accurate and reliable. Cosine Nanoelectronics assumes no reliability for inaccuracies and omissions. Specifications described and contained here are subjected to change without notice on the purpose of improving the design and performance. All of this information described herein should not be implied or granted for any third party.
