K1010 - 4PIN PHOTOTRANSISTOR PHOTOCOUPLER

General Description

The K1010 series consist of an infrared emitting diode, optically coupled to a phototransistor detector.

They are packaged in a 4-pin DIP package and available in wide-lead spacing and SMD option.

Key Features

  • s 1. Current transfer ratio ( CTR：Min. 50% at IF=5mA VCE=5V ) 2. High isolation voltage between input and output ( Viso：5000Vrms ) 3. Pb free and RoHS compliant 4. MSL class 1 5. Agency Approvals.
  • UL Approved (No. E169586): UL1577.
  • c-UL Approved (No. E169586).
  • VDE Approved (No. 101347): DIN EN60747-5-5.
  • FIMKO Approved: EN62368-1, EN60601-1.
  • CQC Approved: GB8898-2011, GB4943.1-2011 K1010 Series 4PIN.

📥 Download Datasheet

Datasheet Details

Part number K1010
Manufacturer Cosmo
File Size 304.39 KB
Description 4PIN PHOTOTRANSISTOR PHOTOCOUPLER
Datasheet download datasheet K1010 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
K1010-01 2SK1010-01 Fuji Electric
K1010MA600 Medium Voltage Thyristor IXYS
K1010MA650 Medium Voltage Thyristor IXYS
K101 Photocoupler(These Photocouplers consist of a Gallium Arsenide Infrared Emitting) KODENSHI KOREA CORP
K1011-01 N-Channel Silicon Power MOSFET Fuji Electric

Other Datasheets by Cosmo

Part Number Description
K10101T LOW INPUT CURRENT PHOTOCOUPLER
K10101W LOW INPUT CURRENT PHOTOCOUPLER
K10101X 4PIN PHOTOTRANSISTOR PHOTOCOUPLER
K10101Z LOW INPUT CURRENT PHOTOCOUPLER
K10103T LOW INPUT CURRENT PHOTOCOUPLER

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

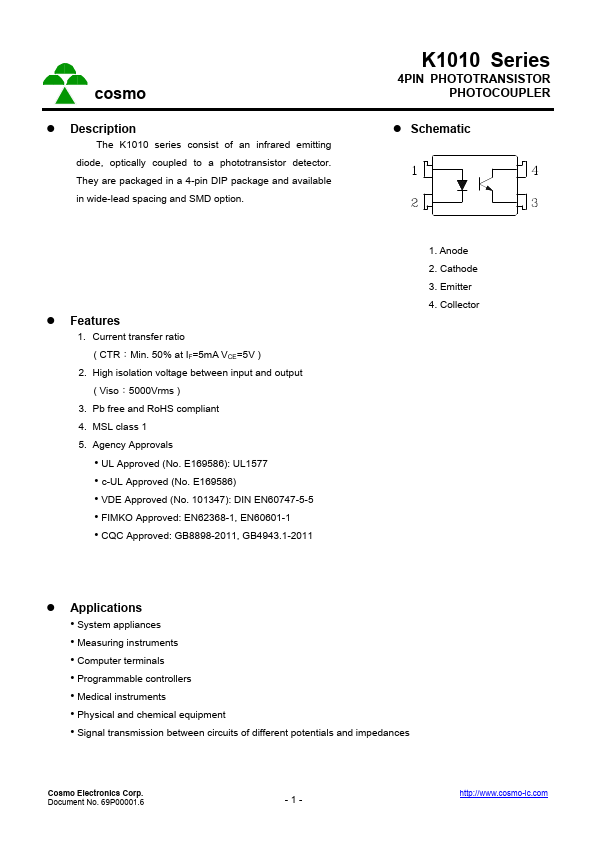

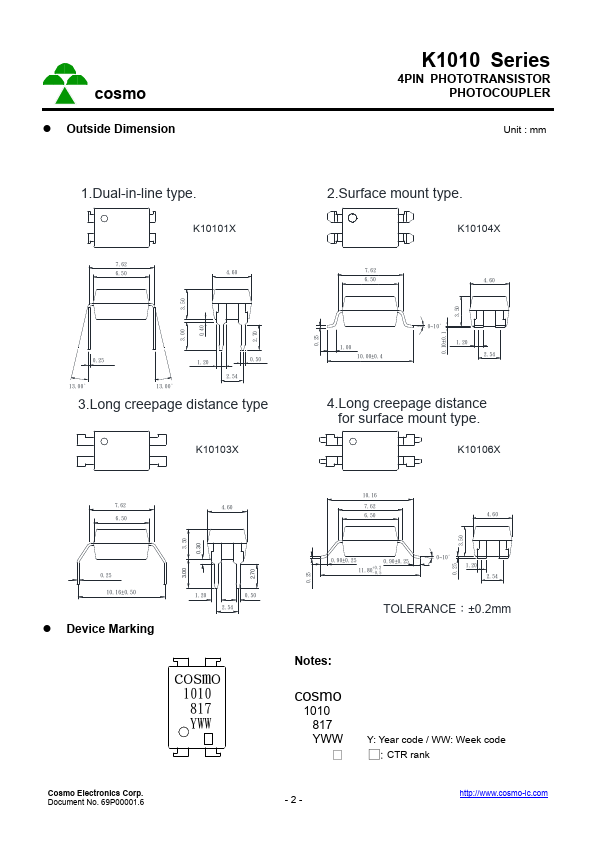

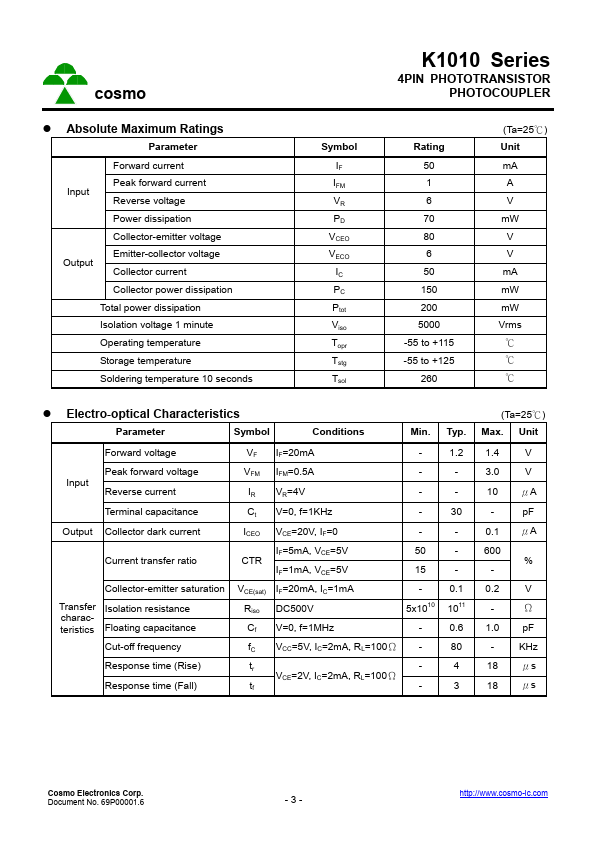

cosmo  Description The K1010 series consist of an infrared emitting diode, optically coupled to a phototransistor detector. They are packaged in a 4-pin DIP package and available in wide-lead spacing and SMD option.  Features 1. Current transfer ratio ( CTR：Min. 50% at IF=5mA VCE=5V ) 2. High isolation voltage between input and output ( Viso：5000Vrms ) 3. Pb free and RoHS compliant 4. MSL class 1 5. Agency Approvals • UL Approved (No. E169586): UL1577 • c-UL Approved (No. E169586) • VDE Approved (No. 101347): DIN EN60747-5-5 • FIMKO Approved: EN62368-1, EN60601-1 • CQC Approved: GB8898-2011, GB4943.1-2011 K1010 Series 4PIN PHOTOTRANSISTOR PHOTOCOUPLER  Schematic 1. Anode 2. Cathode 3. Emitter 4.
