KPC484 - 5PIN IPM DRIVE PHOTOCOUPLER

Description

The KPC484 series photo coupler contains a LED and photo detector with built-in Schmitt trigger to provide logic-compatible waveforms, eliminating the need for additional wave shaping.

Features

  • s 1. Positive output type (totem pole output) 2. Truth Table Guaranteed: VCC from 4.5V to 30V 3. Performance Specified for Common IPM.

📥 Download Datasheet

Datasheet preview – KPC484

Datasheet Details

Part number KPC484
Manufacturer Cosmo
File Size 797.70 KB
Description 5PIN IPM DRIVE PHOTOCOUPLER
Datasheet download datasheet KPC484 Datasheet
Additional preview pages of the KPC484 datasheet.

📁 Similar Datasheet

Other Datasheets by Cosmo
  • KPC4N33H - 6PIN PHOTODARLINGTON PHOTOCOUPLER
  • KPC4N33L - 6PIN PHOTODARLINGTON PHOTOCOUPLER
  • KPC4N33S - 6PIN PHOTODARLINGTON PHOTOCOUPLER
  • KPC354NT0A - 4PIN MINI-FLAT PHOTOTRANSISTOR PHOTOCOUPLER
  • KPC354NT0B - 4PIN MINI-FLAT PHOTOTRANSISTOR PHOTOCOUPLER
  • KPC357NT0T - 4PIN MINI-FLAT LOW INPUT CURRENT PHOTOCOUPLER
  • KPC357NT0W - 4PIN MINI-FLAT LOW INPUT CURRENT PHOTOCOUPLER
  • KPC357NT0WA - 4PIN MINI-FLAT LOW INPUT CURRENT PHOTOCOUPLER

Full PDF Text Transcription

Click to expand full text

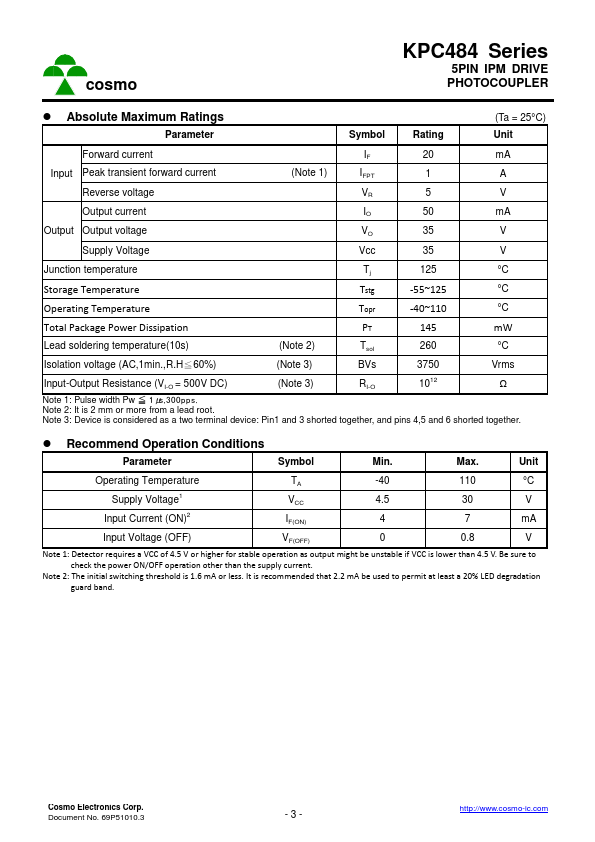

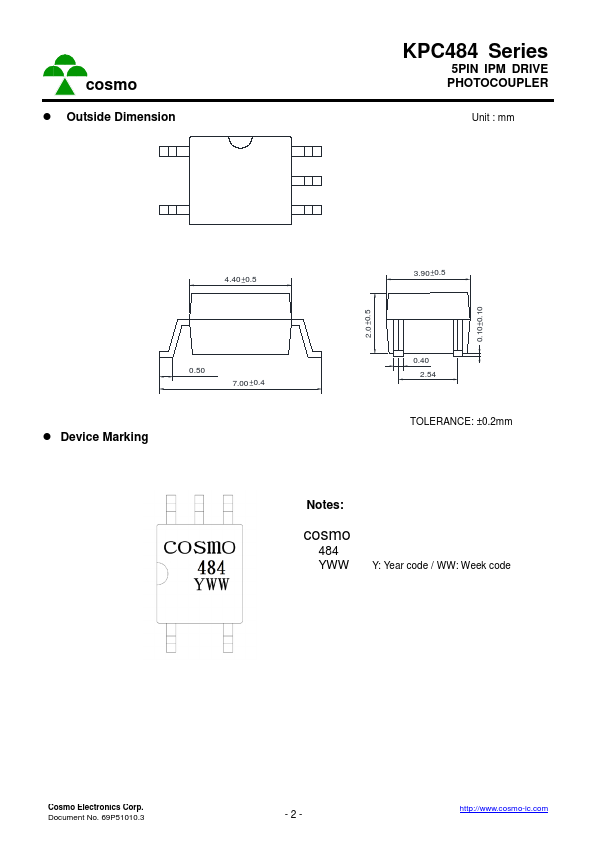

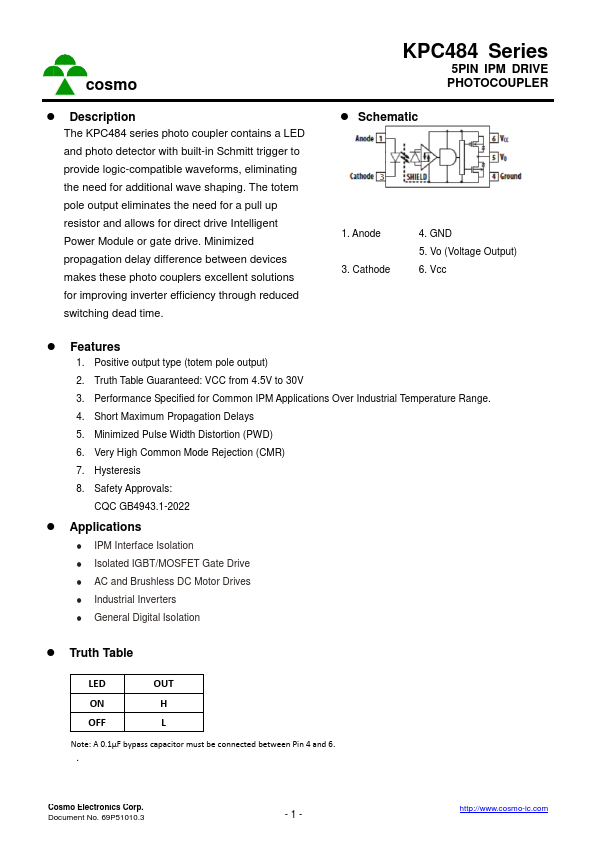

cosmo KPC484 Series 5PIN IPM DRIVE PHOTOCOUPLER  Description The KPC484 series photo coupler contains a LED and photo detector with built-in Schmitt trigger to provide logic-compatible waveforms, eliminating the need for additional wave shaping. The totem pole output eliminates the need for a pull up resistor and allows for direct drive Intelligent Power Module or gate drive. Minimized propagation delay difference between devices makes these photo couplers excellent solutions for improving inverter efficiency through reduced switching dead time.  Schematic 1. Anode 3. Cathode 4. GND 5. Vo (Voltage Output) 6. Vcc  Features 1. Positive output type (totem pole output) 2. Truth Table Guaranteed: VCC from 4.5V to 30V 3.
