KPC6N139S datasheet by Cosmo.
This datasheet includes multiple variants, all published together in a single manufacturer document.
| Part number | KPC6N139S |
|---|---|
| Datasheet | KPC6N139S KPC6N139 Datasheet (PDF) |
| File Size | 345.41 KB |
| Manufacturer | Cosmo |
| Description | 8PIN HIGH-SPEED DARLINGTON OUTPUT PHOTOCOUPLER |
|
|

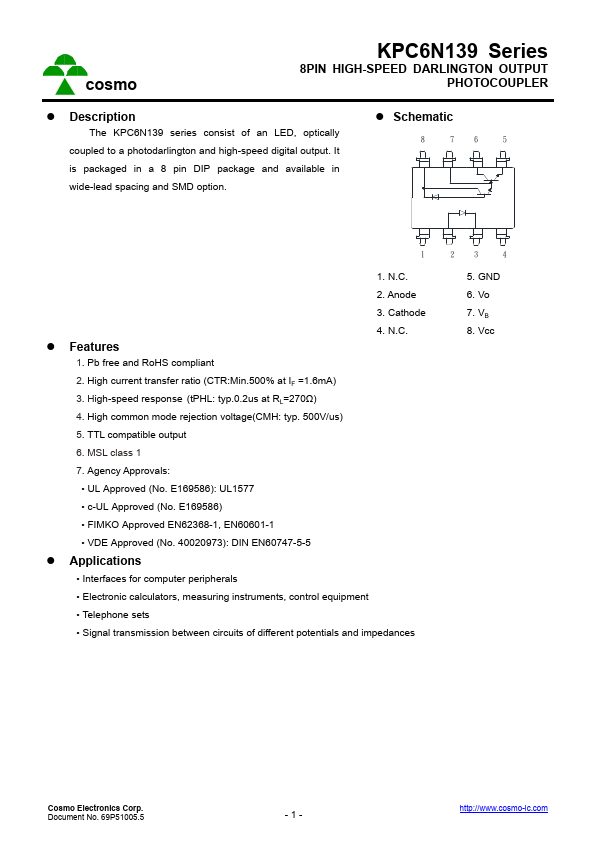

The KPC6N139 series consist of an LED, optically coupled to a photodarlington and high-speed digital output. It is packaged in a 8 pin DIP package and available in wide-lead spacing and SMD option.
| Part Number | Description |
|---|---|
| KPC6N139 | 8PIN HIGH-SPEED DARLINGTON OUTPUT PHOTOCOUPLER |
| KPC6N139H | 8PIN HIGH-SPEED DARLINGTON OUTPUT PHOTOCOUPLER |
| KPC6N139L | 8PIN HIGH-SPEED DARLINGTON OUTPUT PHOTOCOUPLER |
| KPC6N135 | 8PIN HIGH-SPEED OUTPUT PHOTOCOUPLER |
| KPC6N135H | 8PIN HIGH-SPEED OUTPUT PHOTOCOUPLER |
| KPC6N135L | 8PIN HIGH-SPEED OUTPUT PHOTOCOUPLER |
| KPC6N135S | 8PIN HIGH-SPEED OUTPUT PHOTOCOUPLER |
| KPC6N136 | 8PIN HIGH-SPEED OUTPUT PHOTOCOUPLER |
| KPC6N136H | 8PIN HIGH-SPEED OUTPUT PHOTOCOUPLER |
| KPC6N136L | 8PIN HIGH-SPEED OUTPUT PHOTOCOUPLER |
