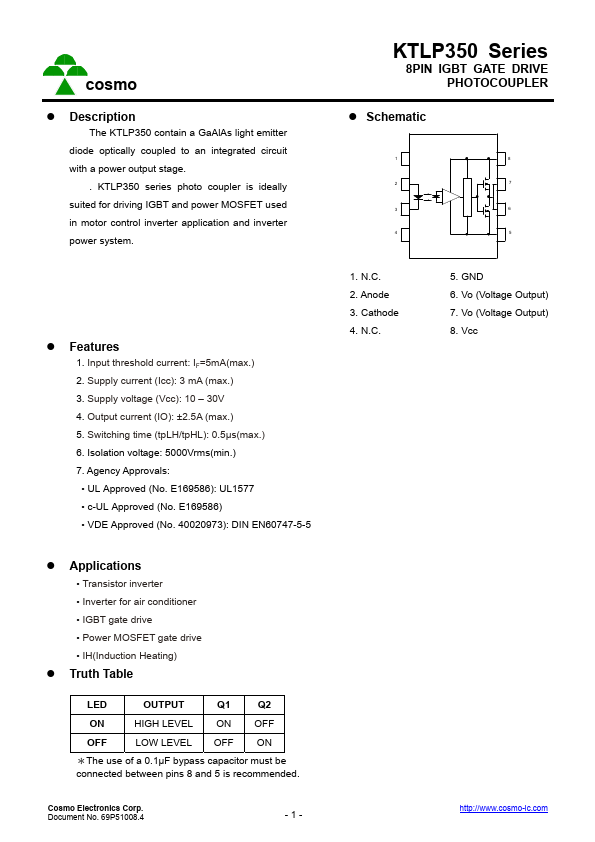

KTLP350S Overview
The KTLP350 contain a GaAlAs light emitter diode optically coupled to an integrated circuit with a power output stage. KTLP350 series photo coupler is ideally suited for driving IGBT and power MOSFET used in motor control inverter application and inverter power system.
KTLP350S Key Features
- 30V 4. Output current (IO): ±2.5A (max.) 5. Switching time (tpLH/tpHL): 0.5µs(max.) 6. Isolation voltage: 5000Vrms(min.)
- UL Approved (No. E169586): UL1577
- c-UL Approved (No. E169586)
- VDE Approved (No. 40020973): DIN EN60747-5-5
