KTLP3616H - 8PIN RANDOM-PHASE TRIAC DRIVER PHOTOCOUPLER

This page provides the datasheet information for the KTLP3616H, a member of the KTLP3616 8PIN RANDOM-PHASE TRIAC DRIVER PHOTOCOUPLER family.

Description

The KTLP3616 series consist of a GaAs infrared emitting diode optically coupled to an non-zero-crossing silicon bilateral TRIAC and a main output power TRIAC.

These devices isolate low voltage logic from 115/240 VAC lines to provide random phase control of high current TRIACs or thyristors.

Features

  • 1. Pb free and RoHS compliant 2. 600V peak blocking voltage 3. On-state R. M. S Current 1.2A 4. Simplifies logic control of 115/240 VAC power 5. Non zero voltage crossing 6. Isolation voltage between input and output (Viso：5300Vms) 7. MSL class 1 8. Agency Approvals：.
  • UL Approved (No. E169586): UL1577.
  • c-UL Approved (No. E169586).
  • VDE Approved (No. 40020973): DIN EN60747-5-5 8 6 5 5. Gate 6. T1 8. T2 z.

📥 Download Datasheet

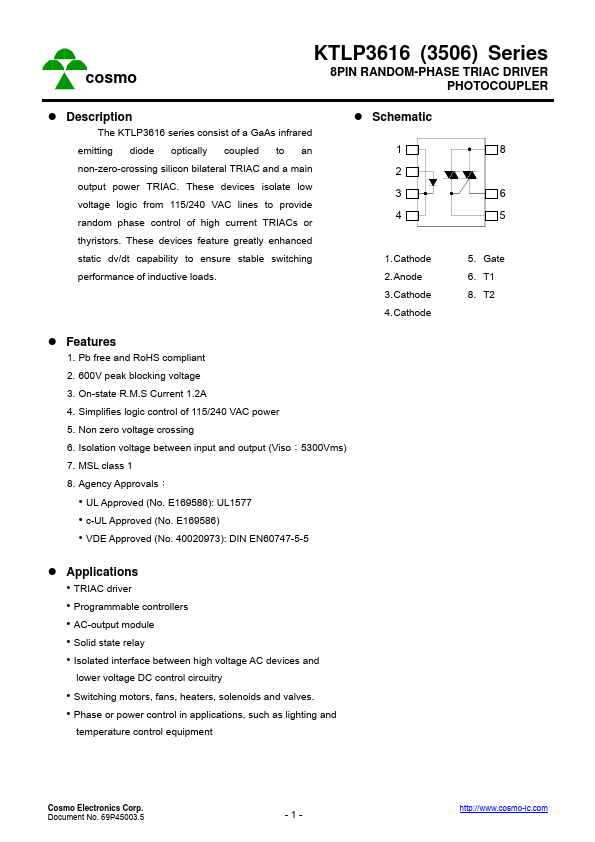

Datasheet preview – KTLP3616H

Datasheet Details

Part number KTLP3616H
Manufacturer Cosmo
File Size 245.57 KB
Description 8PIN RANDOM-PHASE TRIAC DRIVER PHOTOCOUPLER
Datasheet download datasheet KTLP3616H Datasheet

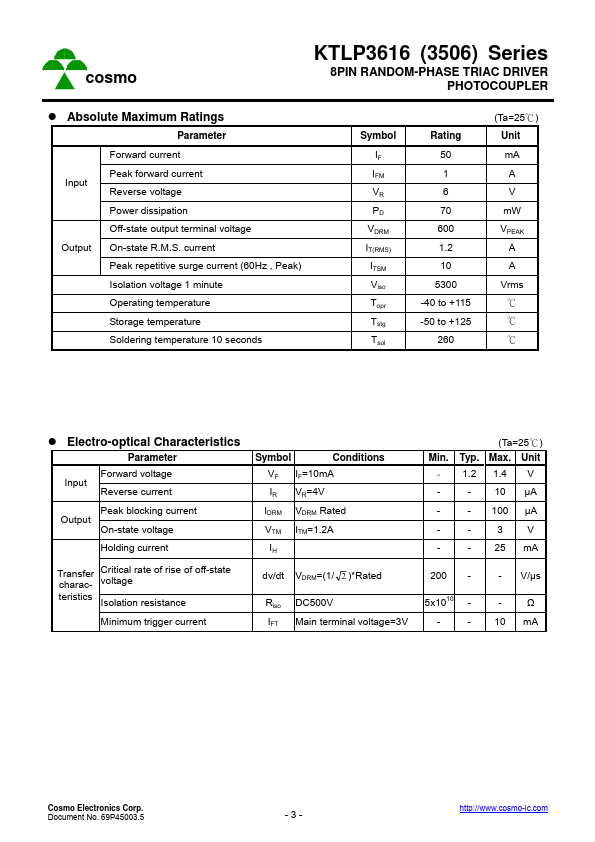

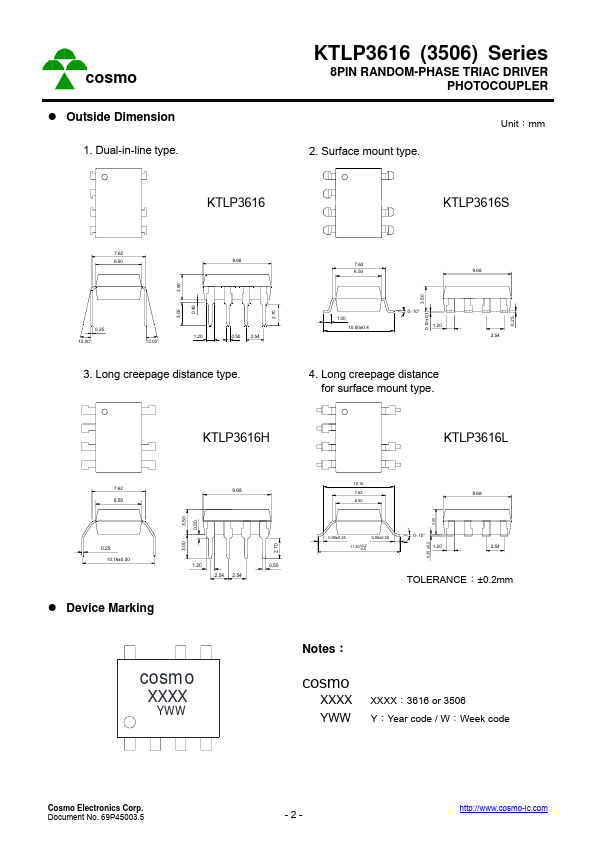

Additional preview pages of the KTLP3616H datasheet.

📁 Similar Datasheet

  • KTLP3616 - 8PIN RANDOM-PHASE TRIAC DRIVER PHOTOCOUPLER (COSMO Electronics Corporation)
  • KTLP3617 - 8PIN ZERO-CROSS TRIAC DRIVER PHOTOCOUPLER (COSMO Electronics Corporation)
  • KTLP3502 - 8PIN RANDOM-PHASE TRIAC DRIVER PHOTOCOUPLER (COSMO Electronics Corporation)
  • KTLP3503 - 8PIN ZERO-CROSS TRIAC DRIVER PHOTOCOUPLER (COSMO Electronics Corporation)
  • KTLP3506 - 8PIN RANDOM-PHASE TRIAC DRIVER PHOTOCOUPLER (COSMO Electronics Corporation)
  • KTLP3507 - 8PIN ZERO-CROSS TRIAC DRIVER PHOTOCOUPLER (COSMO Electronics Corporation)
  • KTLP3520 - Photo Coupler (COSMO Electronics Corporation)
  • KTLP3521 - Photo Coupler (COSMO Electronics Corporation)
  • KTLP3526 - Photo Coupler (COSMO Electronics Corporation)
  • KTLP3527 - Photo Coupler (COSMO Electronics Corporation)
Other Datasheets by Cosmo
  • KTLP3616L - 8PIN RANDOM-PHASE TRIAC DRIVER PHOTOCOUPLER
  • KTLP3616S - 8PIN RANDOM-PHASE TRIAC DRIVER PHOTOCOUPLER
  • KTLP3617H - 8PIN ZERO-CROSS TRIAC DRIVER PHOTOCOUPLER
  • KTLP3617L - 8PIN ZERO-CROSS TRIAC DRIVER PHOTOCOUPLER
  • KTLP3617S - 8PIN ZERO-CROSS TRIAC DRIVER PHOTOCOUPLER
  • KTLP350 - 8PIN IGBT GATE DRIVE PHOTOCOUPLER
  • KTLP3502H - 8PIN RANDOM-PHASE TRIAC DRIVER PHOTOCOUPLER
  • KTLP3502L - 8PIN RANDOM-PHASE TRIAC DRIVER PHOTOCOUPLER

Full PDF Text Transcription

Click to expand full text
cosmo KTLP3616 (3506) Series 8PIN RANDOM-PHASE TRIAC DRIVER PHOTOCOUPLER z Description The KTLP3616 series consist of a GaAs infrared emitting diode optically coupled to an non-zero-crossing silicon bilateral TRIAC and a main output power TRIAC. These devices isolate low voltage logic from 115/240 VAC lines to provide random phase control of high current TRIACs or thyristors. These devices feature greatly enhanced static dv/dt capability to ensure stable switching performance of inductive loads. z Schematic 1 2 3 4 1. Cathode 2. Anode 3. Cathode 4. Cathode z Features 1. Pb free and RoHS compliant 2. 600V peak blocking voltage 3. On-state R.M.S Current 1.2A 4. Simplifies logic control of 115/240 VAC power 5. Non zero voltage crossing 6.
