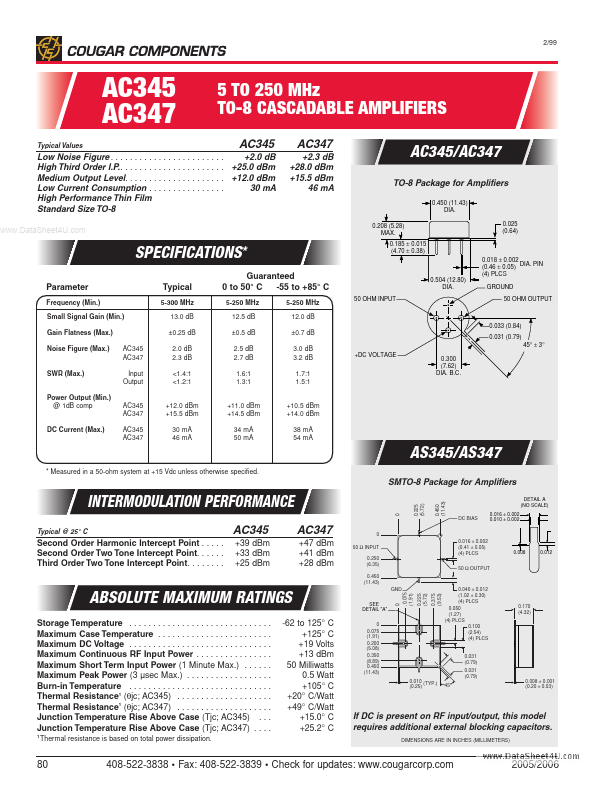

AC345 Datasheet PDF

ABSOLUTE MAXIMUM RATINGS

Storage Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Maximum Case Temperature . . . . . . . . . . . . . . . . . . . . . . . . Maximum DC Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Maximum Continuous RF Input Power . . . . . . . . . . . . . . . . Maximum Short Term Input Power (1 Minute Max.) . . . . . . Maximum Peak Power (3 µsec Max.) . . . . . . . . . . . . . . . . . . Burn-in Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Thermal Resistance1 (θjc; AC345) . . . . . . . . . . . . . . . . . . . . Thermal Resistance1 (θjc; AC347) . . . . . . . . . . . . . . . . . . . . Junction Temperature Rise Above Case (Tjc; AC345) . . . Junction Temperature Rise Above Case (Tjc; AC347) . . . . 1 Thermal resistance is based on total power dissipation. -62 to 125° C +125° C +19 Volts +13 dBm 50 Milliwatts 0.5 Watt +105° C +20° C/Watt +49° C/Watt +15.0° C +25.2° C AC345/AC347 TO-8 Package for Amplifiers 0.450 (11.43) DIA.
