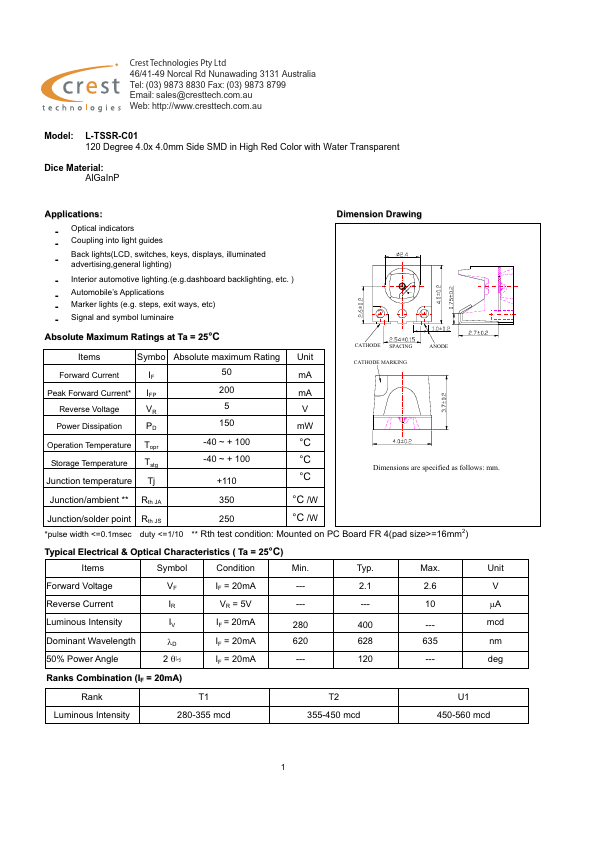

Crest L-TSSR-C01
Side SMD
| Part No. | L-TSSR-C01 |
|---|---|
| Datasheet | L-TSSR-C01 Download |
| Manufacturer | Crest |
| Description | Side SMD |
| Buy | Stock & Price |
APPLICATIONS
: - Optical indicators - Coupling into light guides - Back lights(LCD, switches, keys, displays, illuminated advertising,general lighting) - Interior automotive lighting.(e.g.dashboard backlighting, etc. ) - Automobile’sAPPLICATIONS
- Marker lights (e.g. steps, exit ways, etc) - Signal and symbol luminaireABSOLUTE MAXIMUM RATINGS
at Ta = 25°C Items Symbo Absolute maximum Rating Unit Forward Current IF 50 mA Peak Forward Current* IFP 200 mA Reverse Voltage VR 5 V Power Dissipation PD 150 mW Operation Temperature Topr -40 ~ + 100 °C Storage Temperature Tstg -40 ~ + 100 °C Junction temperature Tj +110 °C Dimension Drawing CATHODE SPACING CATHODE MARKING ANODE Dimensions are specified as follows: mm. Junction/ambient ** Rth JA 350 °C /W Junction/solder point Rth JS 250 °C /W *pulse width <=0.1msec duty <=1/10 ** Rth test condition: Mounted on PC Board FR 4(pad size>=16mm2) Typical Electrical & Optical Characteristics ( Ta = 25°C) Items Symbol Condition Min. Typ. Max. Unit For...
