CC6201E - Full-Polarity Micro-Power Hall Effective Switch

Description

CC6201E is a micro-power, ultra sensitive, full polarity, and with latch output hall switch sensing device, which can directly replace the traditional magnetic reed switch.

Features

  • Wide operating voltage range: 2.0 ~ 5.5V.
  • Micro-power.
  • Fast response speed, working frequency is 40Hz.
  • Full polarity output, response to both South and North magnetic field.
  • Superior temperature stability.
  • Extremely low switch-point drift.
  • ESD ( HBM ) 4kV, ESD ( CDM ) 1kV, LU 200mA.
  • Small package size: SOT23-3 and DFN4L.

📥 Download Datasheet

Datasheet preview – CC6201E

Datasheet Details

Part number CC6201E
Manufacturer CrossChip
File Size 2.67 MB
Description Full-Polarity Micro-Power Hall Effective Switch
Datasheet download datasheet CC6201E Datasheet

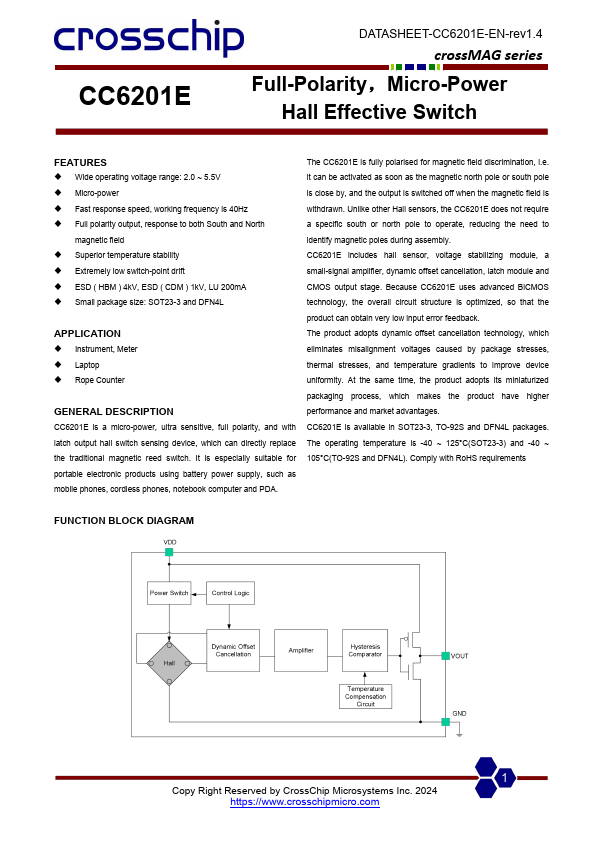

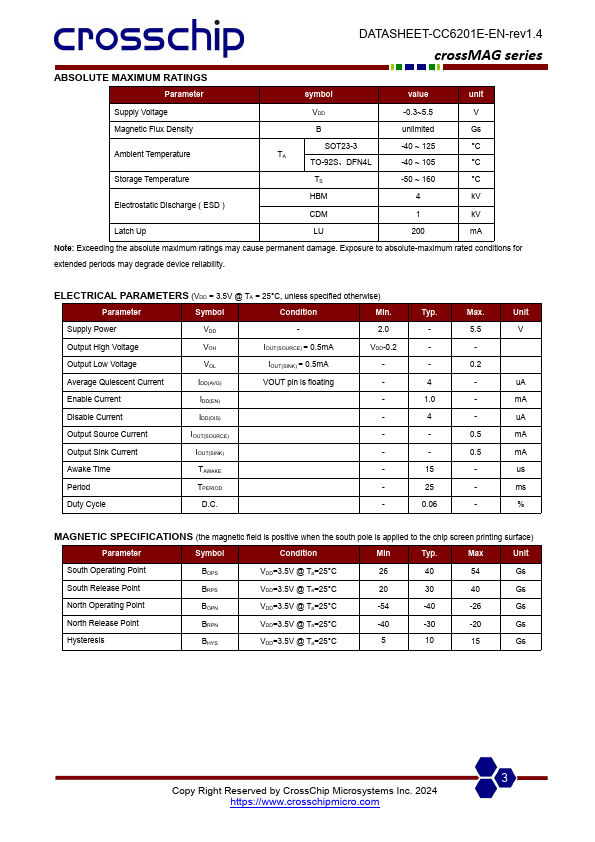

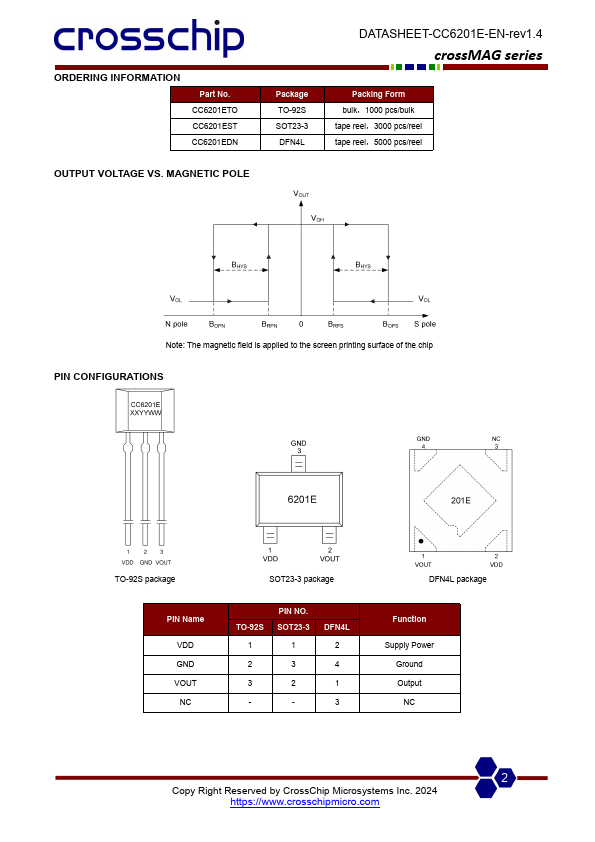

Additional preview pages of the CC6201E datasheet.
