CC6924 - High-performance Hall-effect current sensor

Datasheet Summary

Description

The CC6924 device is a high-performance Hall-effect current sensor that can measure DC or AC current more efficiently, and has the advantages of high accuracy, excellent linearity and temperature stability in industrial, consumer, and communication equipment.

Features

  • Built-in VREF Output，External VREF Input:.
  • Built-in VREF Output: VOE is programmable to < 5mV.
  • External VREF Input: VOUT quiescent output voltage is consistent with it.
  • Measuring current range: 20A, 30A, 40A, 50A, 65A, 75A, 80A, 100A, 125A, 150A, 200A.
  • Low noise，Single-end analog output.
  • High isolation and withstand voltage (5000VRMS isolation voltage between pins 1-8 and 9-16).
  • VWVBI=1500VRMS; VWVRI=750VRMS.
  • Less power loss, internal conductor’s resistan.

📥 Download Datasheet

Datasheet preview – CC6924

Datasheet Details

Part number CC6924
Manufacturer CrossChip
File Size 6.68 MB
Description High-performance Hall-effect current sensor
Datasheet download datasheet CC6924 Datasheet
Additional preview pages of the CC6924 datasheet.

📁 Similar Datasheet

  • CC6-0503SF-E - Ultra Compact Single and Dual DC-DC Converter (TDK-Lambda)
  • CC6-0505SF-E - Ultra Compact Single and Dual DC-DC Converter (TDK-Lambda)
  • CC6-0512DF-E - Ultra Compact Single and Dual DC-DC Converter (TDK-Lambda)
  • CC6-0512SF-E - Ultra Compact Single and Dual DC-DC Converter (TDK-Lambda)
  • CC6-1203SF-E - Ultra Compact Single and Dual DC-DC Converter (TDK-Lambda)
  • CC6-1205SF-E - Ultra Compact Single and Dual DC-DC Converter (TDK-Lambda)
  • CC6-1212DF-E - Ultra Compact Single and Dual DC-DC Converter (TDK-Lambda)
  • CC6-1212SF-E - Ultra Compact Single and Dual DC-DC Converter (TDK-Lambda)
  • CC6-2403SF-E - Ultra Compact Single and Dual DC-DC Converter (TDK-Lambda)
  • CC6-2405SF-E - Ultra Compact Single and Dual DC-DC Converter (TDK-Lambda)
Other Datasheets by CrossChip
  • CC6920 - High Performance Hall Effect-Based Current Sensor IC
  • CC6920B - Current Sensor IC
  • CC6900 - Linear Current Sensor
  • CC6902 - Single Chip Hall Effect Current Sensor
  • CC6903 - Single chip Hall effect current sensor
  • CC6201E - Full-Polarity Micro-Power Hall Effective Switch
  • CC6207 - Omnipolar Micropower Hall Effect Switch
  • CC6211 - Micropower Hall Effect Switch

Full PDF Text Transcription

Click to expand full text

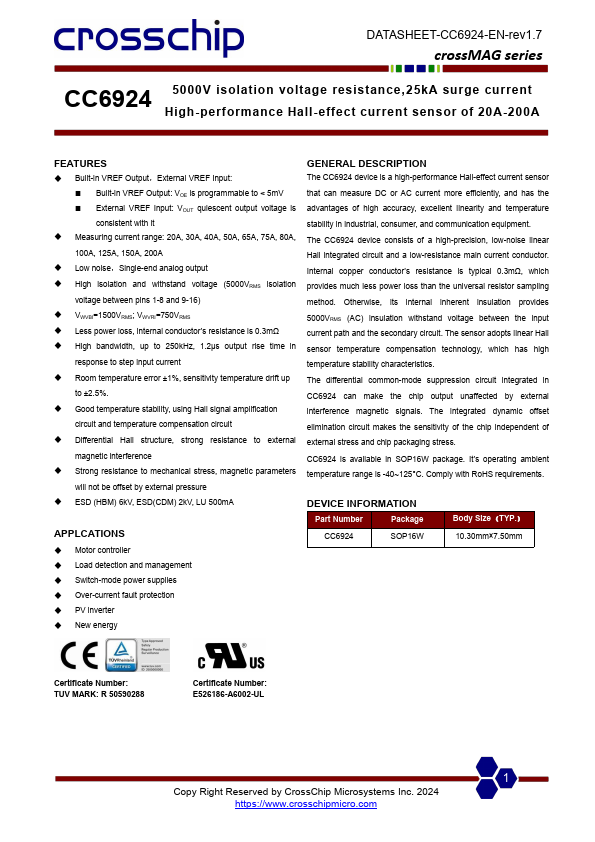

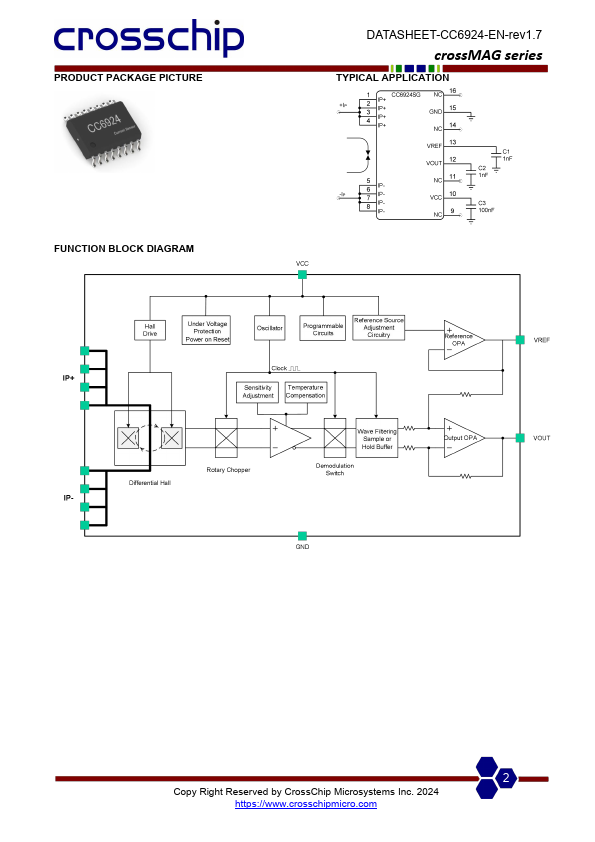

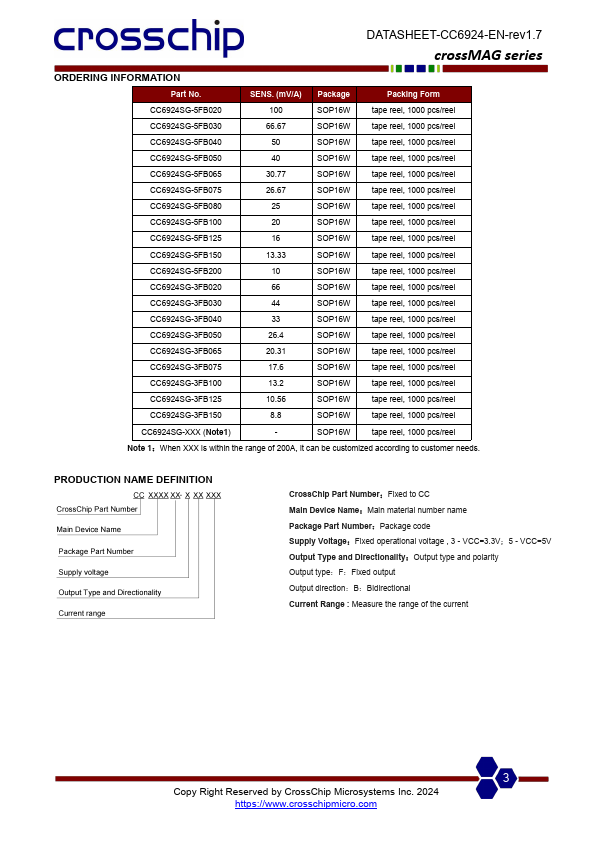

DATASHEET-CC6924-EN-rev1.7 crossMAG series CC6924 5000V isolation voltage resistance,25kA surge current High-performance Hall-effect current sensor of 20A-200A FEATURES  Built-in VREF Output，External VREF Input:  Built-in VREF Output: VOE is programmable to < 5mV  External VREF Input: VOUT quiescent output voltage is consistent with it  Measuring current range: 20A, 30A, 40A, 50A, 65A, 75A, 80A, 100A, 125A, 150A, 200A  Low noise，Single-end analog output  High isolation and withstand voltage (5000VRMS isolation voltage between pins 1-8 and 9-16)  VWVBI=1500VRMS; VWVRI=750VRMS  Less power loss, internal conductor’s resistance is 0.3mΩ  High bandwidth, up to 250kHz, 1.
