CVCO55CC-3350-3500
CRYSTEK Coaxial Resonator Oscillator-CRO
MICROWAVE
A Division of Crystek Corporation

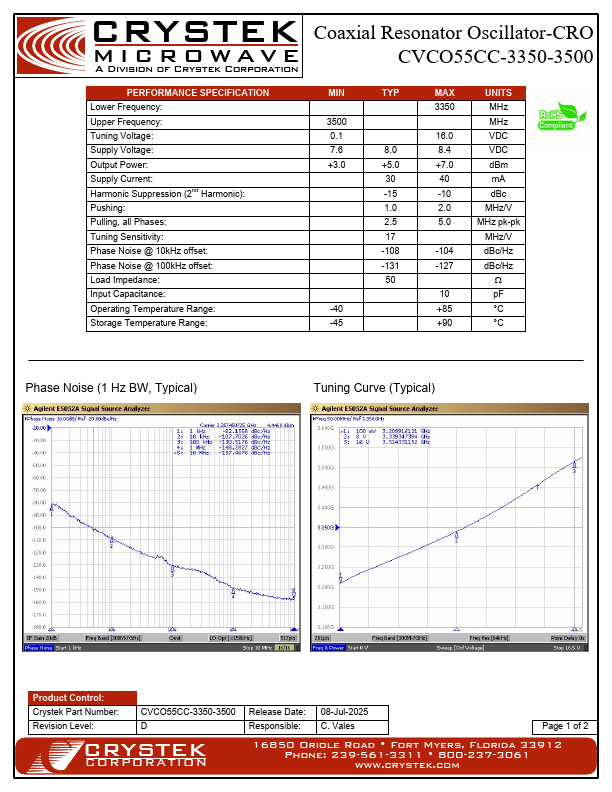

PERFORMANCE SPECIFICATION Lower Frequency: Upper Frequency: Tuning Voltage: Supply Voltage: Output Power: Supply Current: Harmonic Suppression (2nd Harmonic): Pushing: Pulling, all Phases: Tuning Sensitivity: Phase Noise @ 10k Hz offset: Phase Noise @ 100k Hz offset: Load Impedance: Input Capacitance: Operating Temperature Range: Storage Temperature Range:
MIN 3500 0.1 7.6 +3.0
-40 -45
8.0 +5.0 30 -15 1.0 2.5 17 -108 -131 50
MAX 3350
16.0 8.4 +7.0 40 -10 2.0 5.0
-104 -127
10 +85 +90
UNITS MHz MHz VDC VDC d Bm m A d Bc MHz/V MHz pk-pk MHz/V d Bc/Hz d Bc/Hz
p F °C °C
Phase Noise (1 Hz BW, Typical)
Tuning Curve (Typical)
Product Control: Crystek Part Number: Revision Level:
CVCO55CC-3350-3500 D
C CRYSTEK CORPORATION
Release Date: 08-Jul-2025 Responsible: C. Vales
Page 1 of 2
