CVPD-920 Model 9×14 mm SMD, 3.3V, LVPECL
Frequency Range: Frequency Pulling: Temperature Range:
(Option X) Storage: Input Voltage: Control Voltage: Input Current: Output:
Symmetry: Rise/Fall Time: Linearity: Logic:
Disable Time:
Start-up Time:
Phase Jitter:
12kHz to 80MHz
Phase Noise:
10Hz
100Hz
1kHz
10kHz
100kHz
Aging:
50 MHz to 125 MHz ±20ppm APR Min 0°C to 70°C -40°C to 85°C -45°C to 90°C 3.3V ±0.3V 1.65V ±1.65V 88mA Max Differential LVPECL 45/55% Max @ zero crossing point 1ns Max (20% to 80%) ±10% Max Terminated to Vcc-2V into 50 ohms "0" = Vcc-1.85V Min, Vcc-1.62V Max "1" = Vcc-1.02V Min, Vcc-0.81V Max 200ns 1ms Typical, 2ms Max 0.

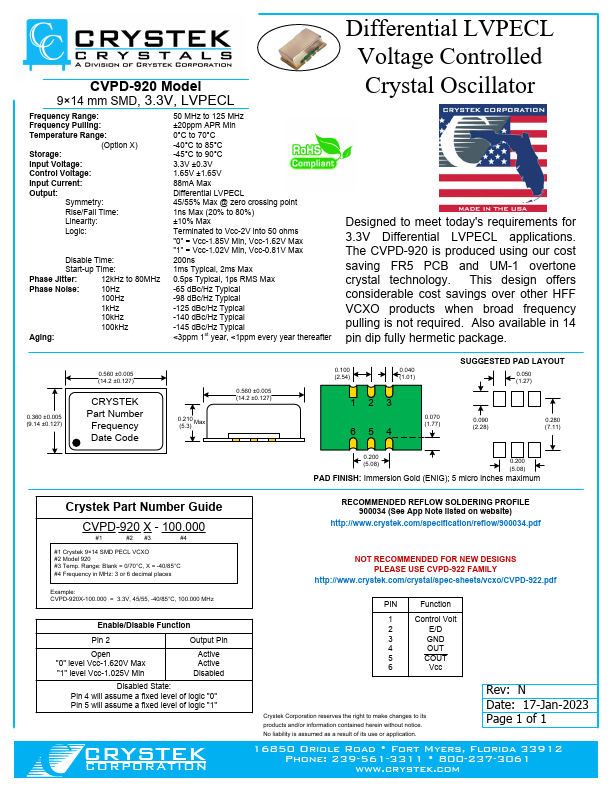

CVPD-920 Datasheet
