Datasheet Summary

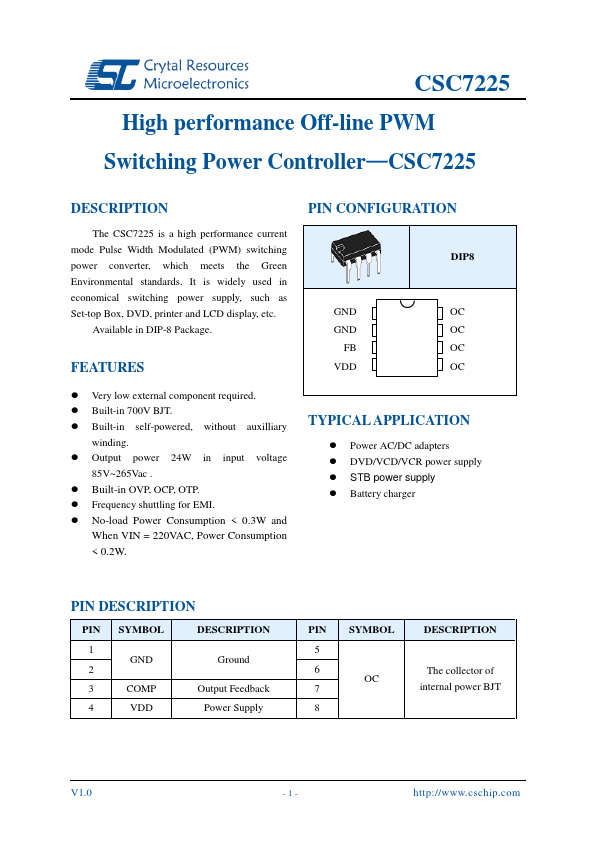

High performance Off-line PWM Switching Power Controller- CSC7225
DESCRIPTION
The CSC7225 is a high performance current mode Pulse Width Modulated (PWM) switching power converter, which meets the Green Environmental standards. It is widely used in economical switching power supply, such as Set-top Box, DVD, printer and LCD display, etc.
Available in DIP-8 Package.
Features
- Very low external ponent required.
- Built-in 700V BJT.
- Built-in self-powered, without auxilliary winding.
- Output power 24W in input voltage
85V~265Vac .
- Built-in OVP, OCP, OTP.
- Frequency shuttling for EMI.
- No-load Power Consumption < 0.3W and
When VIN = 220VAC, Power Consumption < 0.2W.
PIN...
