SSL310B - Schottky Barrier Rectifier

CumSumI

Download the SSL310B datasheet PDF. This datasheet also covers the SSL34B variant, as both devices belong to the same schottky barrier rectifier family and are provided as variant models within a single manufacturer datasheet.

Key Features

Low profile package.
Ideal for automated placement.
High efficiency operation.
Low forward voltage drop.
Guard ring for enhanced ruggedness and long term reliablity.
High purity,high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance.
Meets MSL level 1, per J-STD-020,LF maximum peak of 260 °C Typical.

📥 Download Datasheet

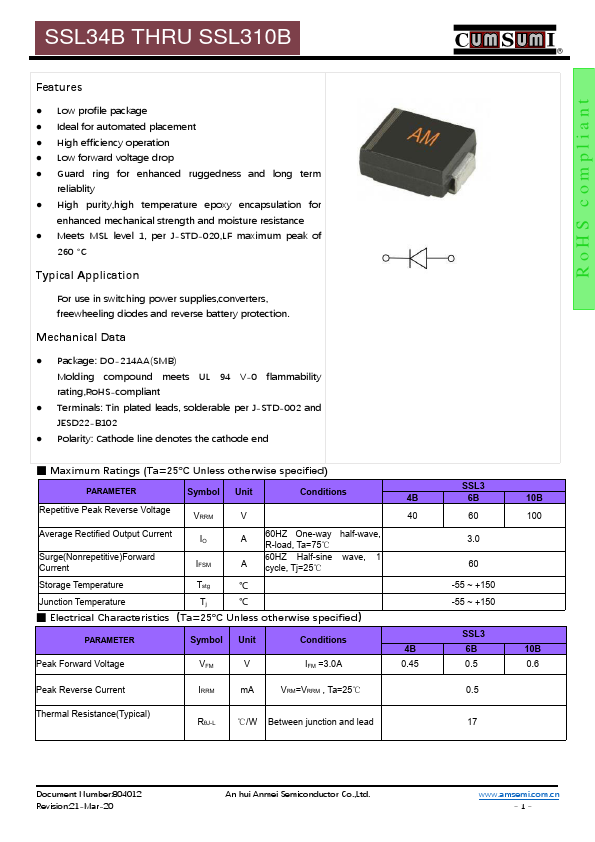

SSL310B schottky barrier rectifier by CumSumI - Datasheet Preview — Note: The manufacturer provides a single datasheet file (SSL34B-CumSumI.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number	SSL310B
Manufacturer	CumSumI
File Size	655.47 KB
Description	Schottky Barrier Rectifier
Datasheet	SSL310B Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
SSL310B	Surface Mount Schottky Barrier Rectifier	Jingdao
SSL310C	Surface Mount Schottky Barrier Rectifier	Jingdao
SSL30	LOW Vf SCHOTTKY BARRIER RECTIFIER	Rectron Semiconductor
SSL30L	LOW Vf SCHOTTKY BARRIER RECTIFIER	Rectron Semiconductor
SSL32	Surface Mount Schottky Barrier Rectifier	Taiwan Semiconductor

Other Datasheets by CumSumI

Part Number	Description
SSL34B	Schottky Barrier Rectifier
SSL36B	Schottky Barrier Rectifier

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

RoHS compliant SSL34B THRU SSL310B Features ● Low profile package ● Ideal for automated placement ● High efficiency operation ● Low forward voltage drop ● Guard ring for enhanced ruggedness and long term reliablity ● High purity,high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance ● Meets MSL level 1, per J-STD-020,LF maximum peak of 260 °C Typical Application For use in switching power supplies,converters, freewheeling diodes and reverse battery protection.
