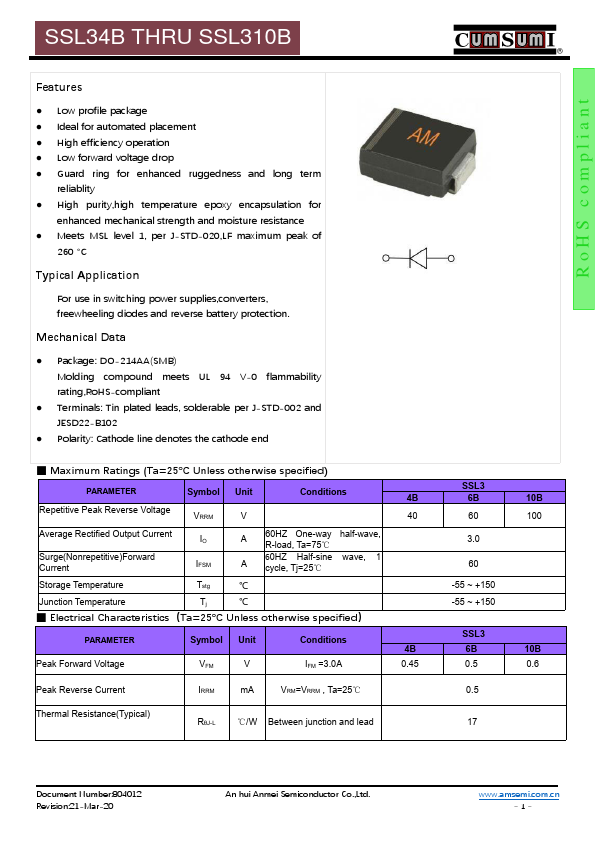

CumSumI SSL34B
Schottky Barrier Rectifier
| Part No. | SSL34B |
|---|---|
| Datasheet | SSL34B Download |
| Manufacturer |  CumSumI |
| Description | Schottky Barrier Rectifier |
| Buy | Stock & Price |
FEATURES
● Low profile package● Ideal for automated placement
● High efficiency operation
● Low forward voltage drop
● Guard ring for enhanced ruggedness and long term reliablity
● High purity,high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
● Meets MSL level 1, per J-STD-020,LF maximum peak of 260 °C Typical Application For use in switching power supplies,converters, freewheeling diodes and reverse battery protection.
MECHANICAL DATA

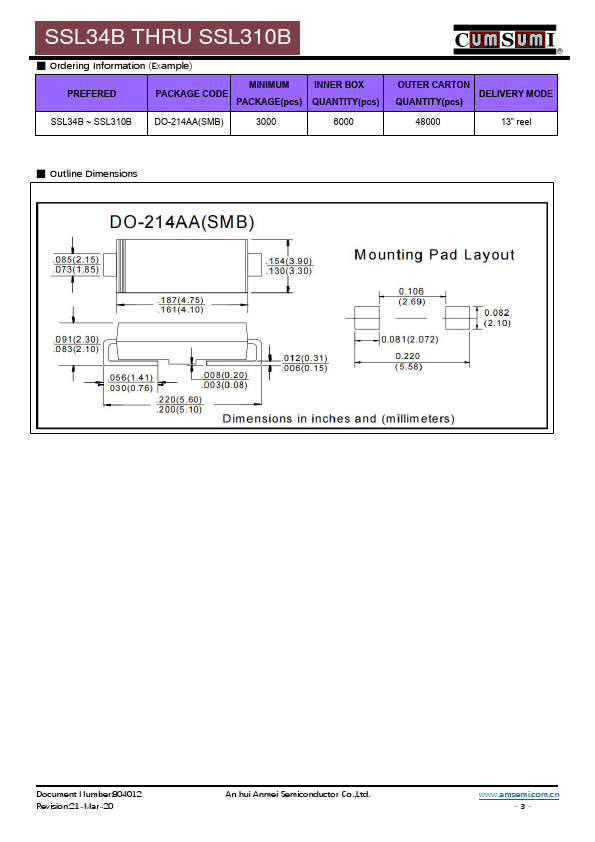

● Package: DO-214AA(SMB) Molding compound meets UL 94 V-0 flammability rating,RoHS-compliant● Terminals: Tin plated leads, solderable per J-STD-002 and JESD22-B102
● Polarity: Cathode line denotes the cathode end
●
MAXIMUM RATINGS
(Ta=25℃ Unless otherwise specified) PARAMETER Symbol Unit Conditions 4B Repetitive Peak Reverse Voltage VRRM V 40 Average Rectified Output Current IO Surge(Nonrepetitive)Forward Current IFSM A 60HZ One-way half-wave, R-load, Ta=75℃ 60HZ Half-sine wave, 1 A cycle, Tj=25℃ Storage Temp...
