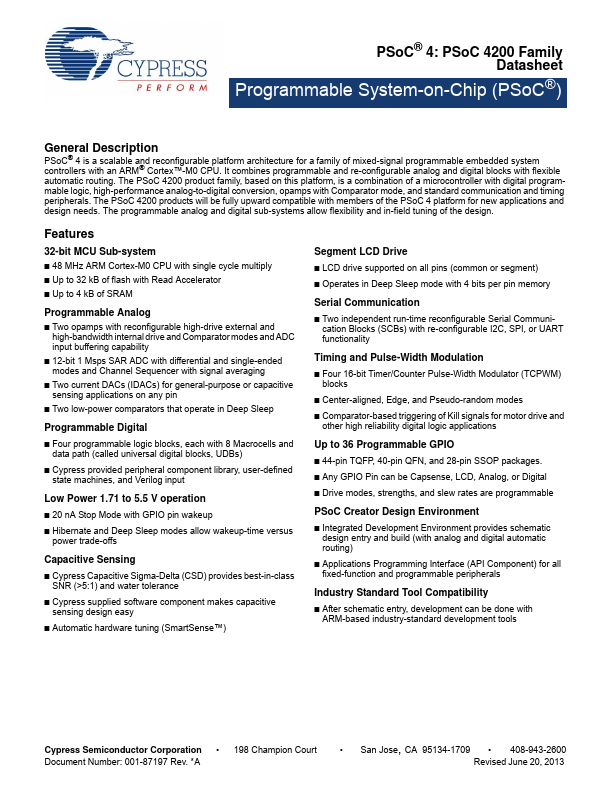

CY8C4244PVI-442
Overview
PSoC® 4 is a scalable and reconfigurable platform architecture for a family of mixed-signal programmable embedded system controllers with an ARM® Cortex™-M0 CPU. It combines programmable and re-configurable analog and digital blocks with flexible automatic routing.
- 48 MHz ARM Cortex-M0 CPU with single cycle multiply
- Up to 32 kB of flash with Read Accelerator
- Up to 4 kB of SRAM Programmable Analog
- Two opamps with reconfigurable high-drive external and high-bandwidth internal drive and Comparator modes and ADC input buffering capability
- 12-bit 1 Msps SAR ADC with differential and single-ended modes and Channel Sequencer with signal averaging
- Two current DACs (IDACs) for general-purpose or capacitive sensing applications on any pin
- Two low-power comparators that operate in Deep Sleep Programmable Digital
- Four programmable logic blocks, each with 8 Macrocells and data path (called universal digital blocks, UDBs)
- Cypress provided peripheral component library, user-defined state machines, and Verilog input Low Power 1.71 to 5.5 V operation
- 20 nA Stop Mode with GPIO pin wakeup
