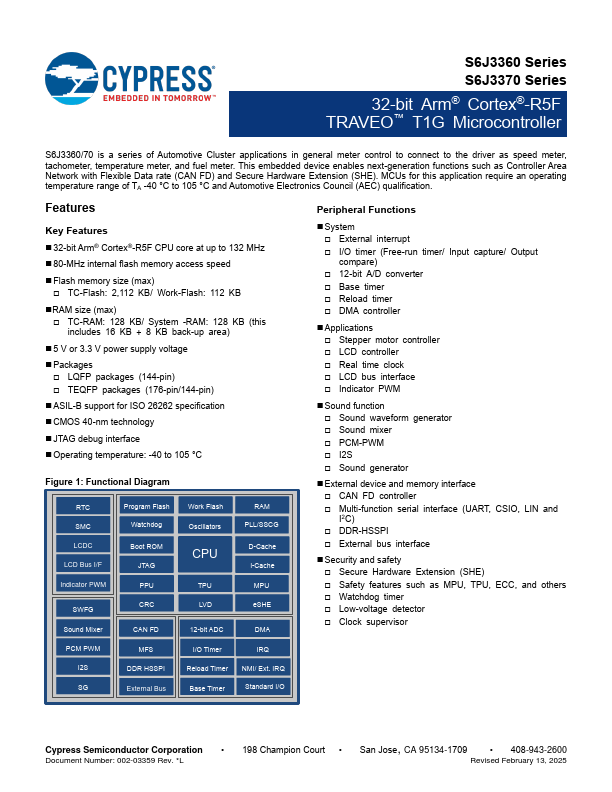

S6J336AHTBSC20000 Description
S6J3360 Series S6J3370 Series 32-bit Arm® Cortex®-R5F TRAVEO™ T1G Microcontroller S6J3360/70 is a series of Automotive Cluster applications in general meter control to connect to the driver as speed meter, tachometer, temperature meter, and fuel meter. This embedded device enables next-generation functions such as Controller Area Network with Flexible Data rate (CAN FD) and Secure Hardware Extension (SHE). MCUs for...

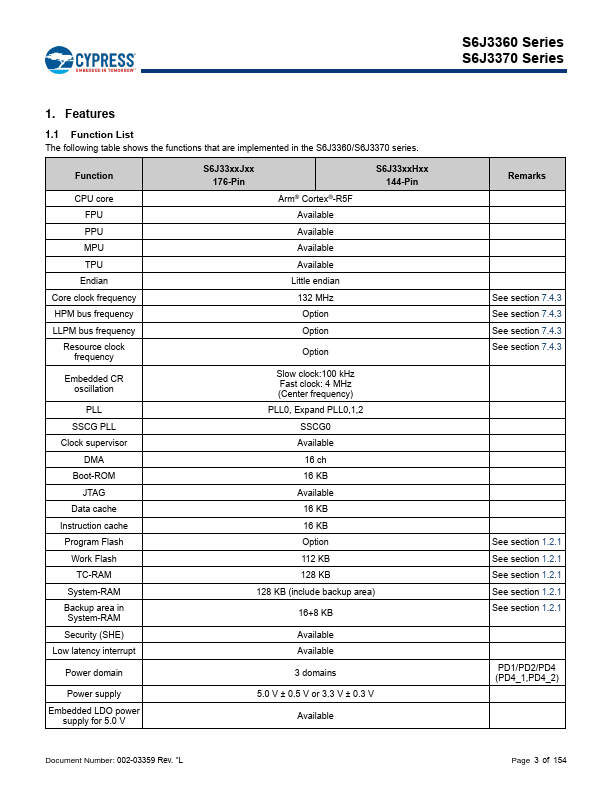

S6J336AHTBSC20000 Key Features
- 32-bit Arm® Cortex®-R5F CPU core at up to 132 MHz
- 80-MHz internal flash memory access speed
- Flash memory size (max)
- 5 V or 3.3 V power supply voltage
- Packages
- ASIL-B support for ISO 26262 specification
- CMOS 40-nm technology
- JTAG debug interface
- Operating temperature: -40 to 105 °C
- System External interrupt I/O timer (Free-run timer/ Input capture/ Output pare) 12-bit A/D converter Base timer
