S6J336CHTBSC20000 - 32-bit T1G Microcontroller

Download the S6J336CHTBSC20000 datasheet PDF. This datasheet also covers the S6J3360 variant, as both devices belong to the same 32-bit t1g microcontroller family and are provided as variant models within a single manufacturer datasheet.

General Description

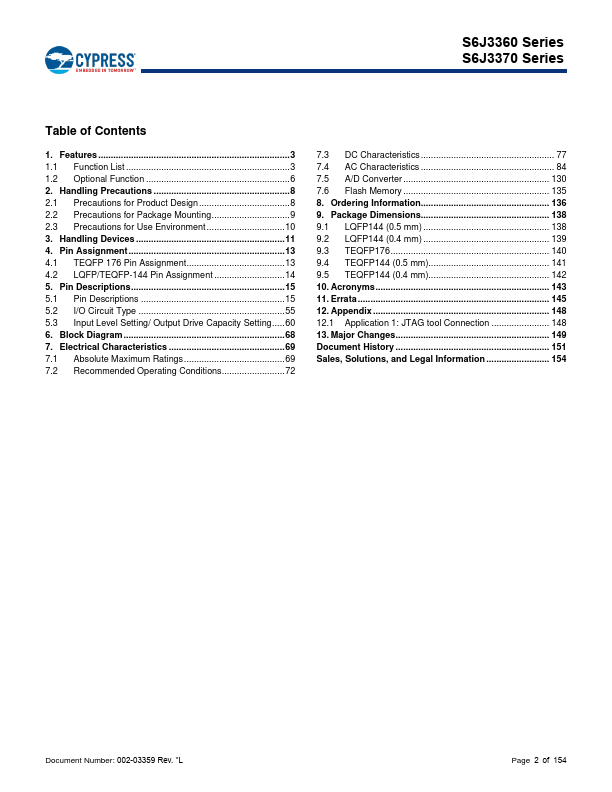

15 5.1 Pin Descriptions 15 5.2 I/O Circuit Type 55 5.3 Input Level Setting/ Output Drive Capacity Setting60 6.

Block Diagram 68 7.

Key Features

  • Key Features.
  • 32-bit Arm® Cortex®-R5F CPU core at up to 132 MHz.
  • 80-MHz internal flash memory access speed.
  • Flash memory size (max)  TC-Flash: 2,112 KB/ Work-Flash: 112 KB.
  • RAM size (max)  TC-RAM: 128 KB/ System -RAM: 128 KB (this includes 16 KB + 8 KB back-up area).
  • 5 V or 3.3 V power supply voltage.
  • Packages  LQFP packages (144-pin)  TEQFP packages (176-pin/144-pin).
  • ASIL-B support for ISO 26262 specification.
  • CMOS 40-nm technology.
  • JTAG debug in.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (S6J3360-Cypress.pdf) that lists specifications for multiple related part numbers.

Full PDF Text Transcription for S6J336CHTBSC20000 (Reference)

Note: Below is a high-fidelity text extraction (approx. 800 characters) for S6J336CHTBSC20000. For precise diagrams, and layout, please refer to the original PDF.

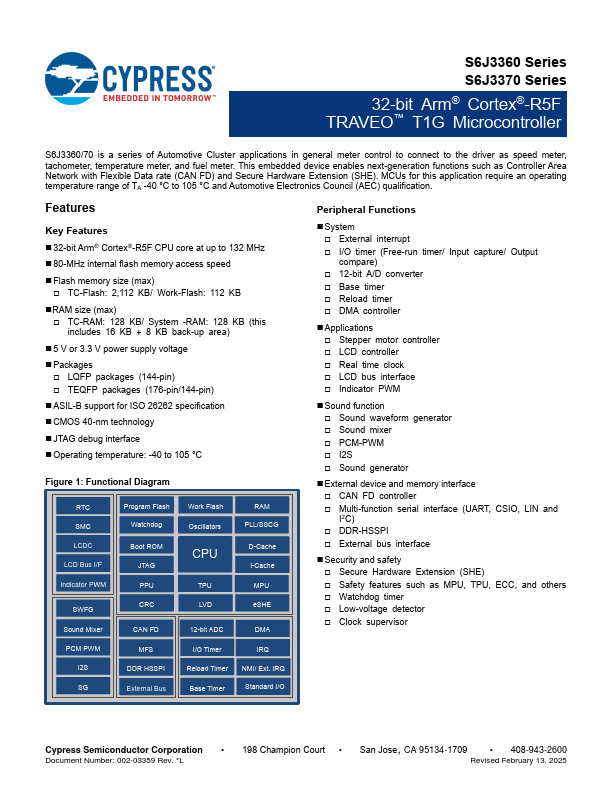

S6J3360 Series S6J3370 Series 32-bit Arm® Cortex®-R5F TRAVEO™ T1G Microcontroller S6J3360/70 is a series of Automotive Cluster applications in general meter control to co...

View more extracted text
ries of Automotive Cluster applications in general meter control to connect to the driver as speed meter, tachometer, temperature meter, and fuel meter. This embedded device enables next-generation functions such as Controller Area Network with Flexible Data rate (CAN FD) and Secure Hardware Extension (SHE). MCUs for this application require an operating temperature range of TA -40 °C to 105 °C and Automotive Electronics Council (AEC) qualification.
