DAP8201M
DAP8201M is A Fast Ethernet PHY manufactured by DAPU.
- A Fast Ethernet PHY Series

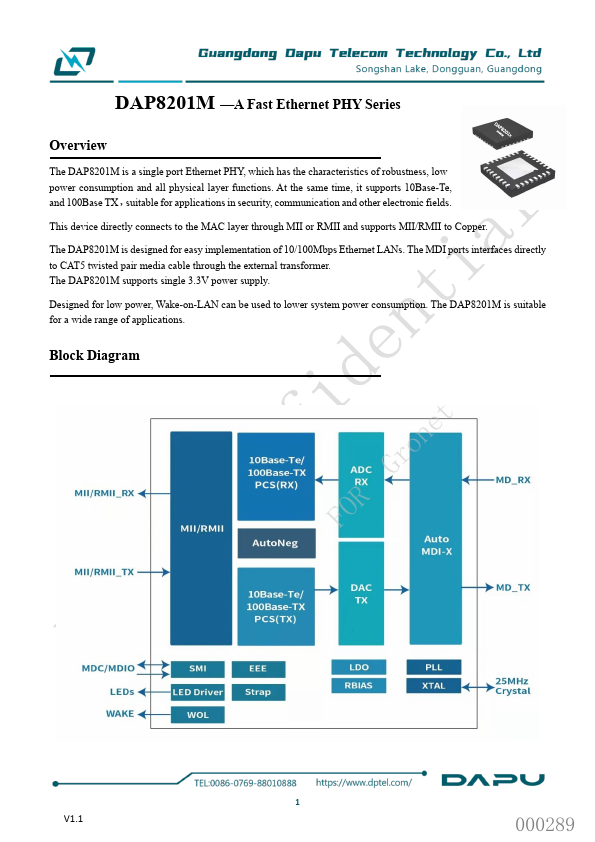

Overview
The DAP8201M is a single port Ethernet PHY, which has the characteristics of robustness, low power consumption and all physical layer functions. At the same time, it supports 10Base-Te, and 100Base TX，suitable for applications in security, munication and other electronic fields. This device directly connects to the MAC layer through MII or RMII and supports MII/RMII to Copper. The DAP8201M is designed for easy implementation of 10/100Mbps Ethernet LANs. The MDI ports interfaces directly to CAT5 twisted pair media cable through the external transformer. The DAP8201M supports single 3.3V power supply. Designed for low power, Wake-on-LAN can be used to lower system power consumption. The DAP8201M is suitable for a wide range of applications.
Block Diagram
Gronet FOR
V1.1

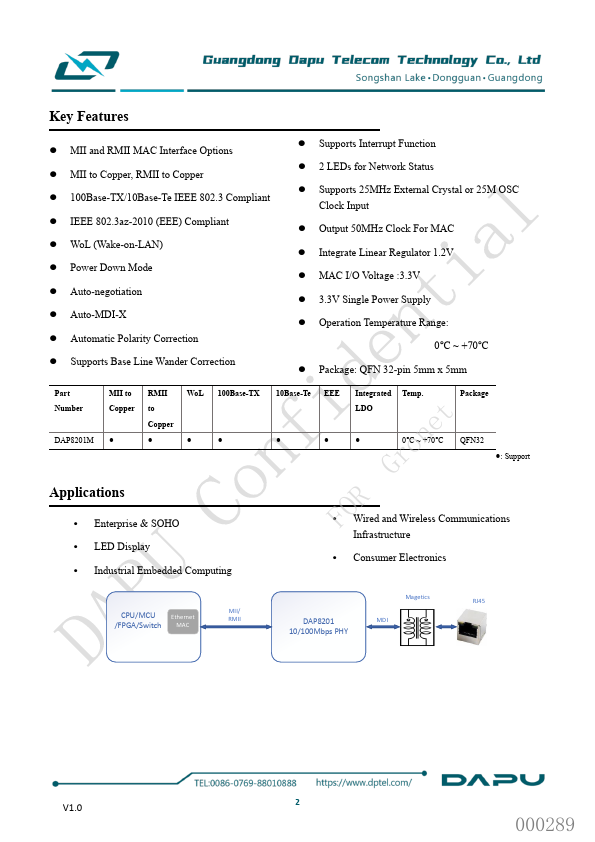

Key Features
- MII and RMII MAC Interface Options
- MII to Copper, RMII to Copper
- 100Base-TX/10Base-Te IEEE 802.3 pliant
- IEEE 802.3az-2010 (EEE) pliant
- Wo L (Wake-on-LAN)
- Power Down Mode
- Auto-negotiation
- Auto-MDI-X
- Automatic Polarity Correction
- Supports Base Line Wander Correction
- Supports Interrupt Function
- 2 LEDs for Network Status
- Supports 25MHz External Crystal or 25M OSC
Clock Input
- Output 50MHz Clock For MAC
- Integrate Linear Regulator 1.2V
- MAC I/O Voltage :3.3V
- 3.3V Single Power Supply
- Operation Temperature Range:
0℃ ~ +70℃
- Package: QFN 32-pin 5mm x 5mm
Part Number
