DAP8211S Description
DAP8211S(I) Gigabit Ethernet PHY Overview The DAP8211S(I) device is a robust, low power, single port Gigabit Ethernet and fully featured Physical Layer transceiver which is pliant with IEEE802.3 10BASE-Te, IEEE802.3u 100BASE-TX and IEEE802.3ab 1000BASE-T Ethernet protocols. This device interfaces directly to the MAC layer through RGMII or SGMII. The DAP8211S(I) is designed for easy implementation of 10/100/1000 Mbps...

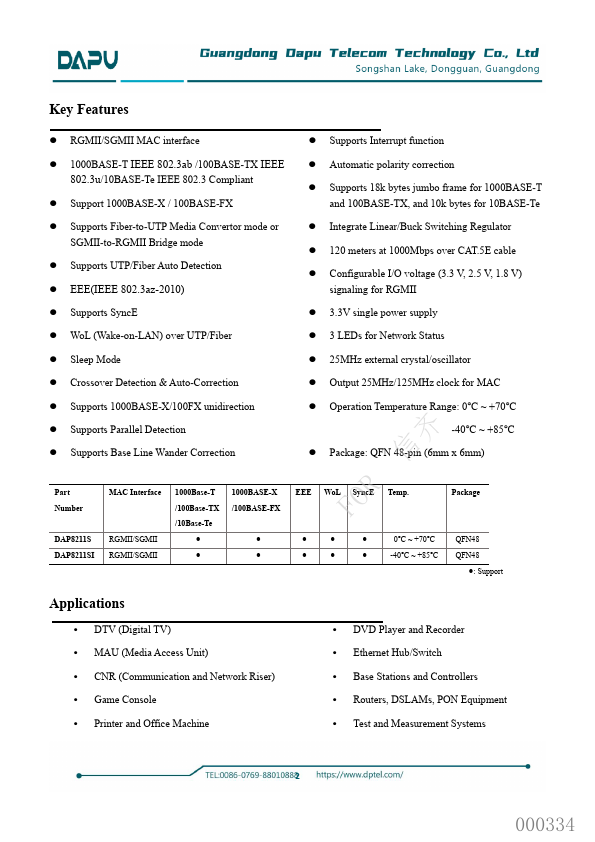

DAP8211S Key Features
- RGMII/SGMII MAC interface
- Supports Interrupt function
- 1000BASE-T IEEE 802.3ab /100BASE-TX IEEE 802.3u/10BASE-Te IEEE 802.3 pliant
- Support 1000BASE-X / 100BASE-FX
- Automatic polarity correction
- Supports 18k bytes jumbo frame for 1000BASE-T and 100BASE-TX, and 10k bytes for 10BASE-Te
- Supports Fiber-to-UTP Media Convertor mode or SGMII-to-RGMII Bridge mode
- Supports UTP/Fiber Auto Detection
- EEE(IEEE 802.3az-2010)
- Integrate Linear/Buck Switching Regulator
