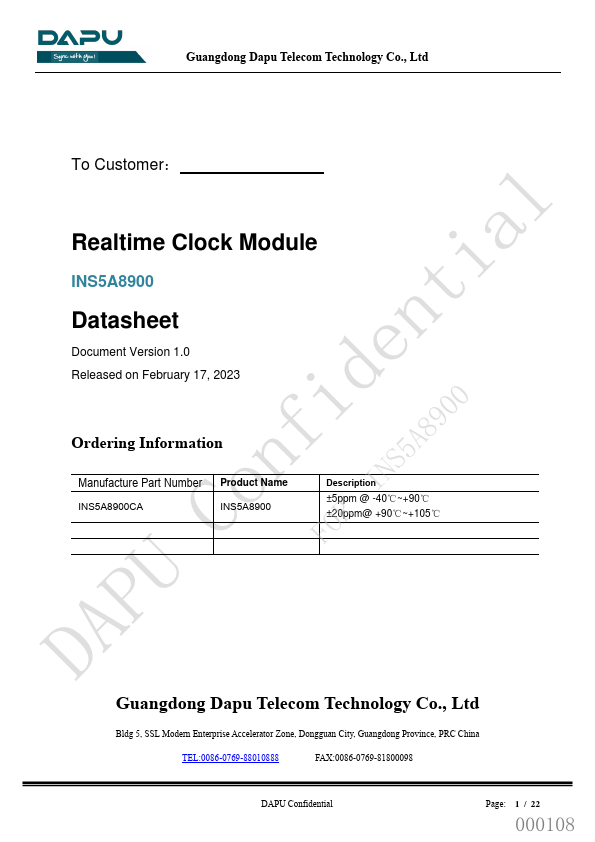

INS5A8900
INS5A8900 is Realtime Clock Module manufactured by DAPU.
Guangdong Dapu Tele Technology Co., Ltd
To Customer：
Realtime Clock Module
Document Version 1.0 Released on February 17, 2023
Ordering Information
Manufacture Part Number
INS5A8900CA
Product Name INS5A8900
INS5A8900 Description
±5ppm @ -40℃~+90℃
FOR±20ppm@ +90℃~+105℃
Guangdong Dapu Tele Technology Co., Ltd
Bldg 5, SSL Modern Enterprise Accelerator Zone, Dongguan City, Guangdong Province, PRC China
TEL:0086-0769-88010888
FAX:0086-0769-81800098
DAPU Confidential
Page: 1 / 22
Guangdong Dapu Tele Technology Co., Ltd

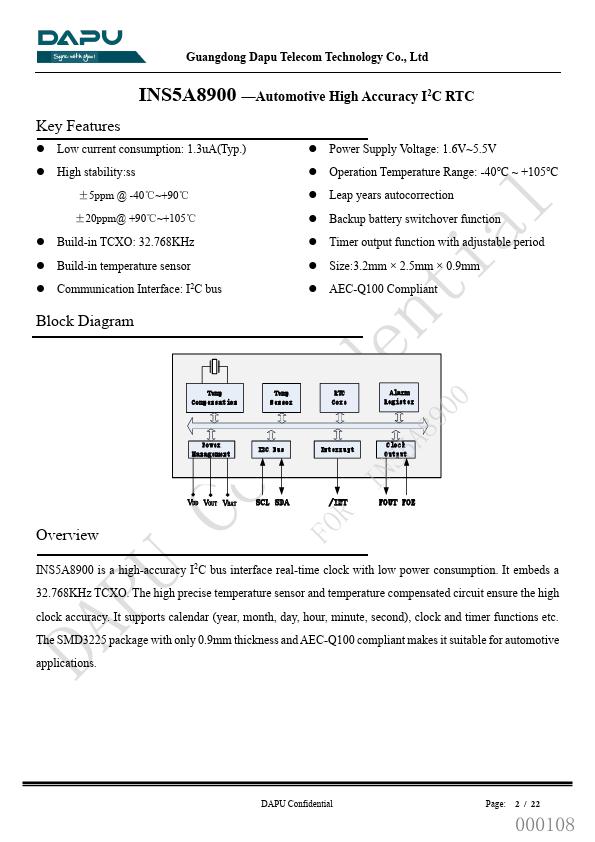

- Automotive High Accuracy I2C RTC
Key Features
- Low current consumption: 1.3u A(Typ.)
- High stability:ss
±5ppm @ -40℃~+90℃ ±20ppm@ +90℃~+105℃
- Build-in TCXO: 32.768KHz
- Build-in temperature sensor
- munication Interface: I2C bus
- Power Supply Voltage: 1.6V~5.5V
- Operation Temperature Range: -40℃ ~ +105℃
- Leap years autocorrection
- Backup battery switchover...
