INS5T8111
INS5T8111 is Realtime Clock Module manufactured by DAPU.
Guangdong Dapu Tele Technology Co., Ltd
To Customer：
Realtime Clock Module
Document Version 1.0 Released on June 20th, 2024

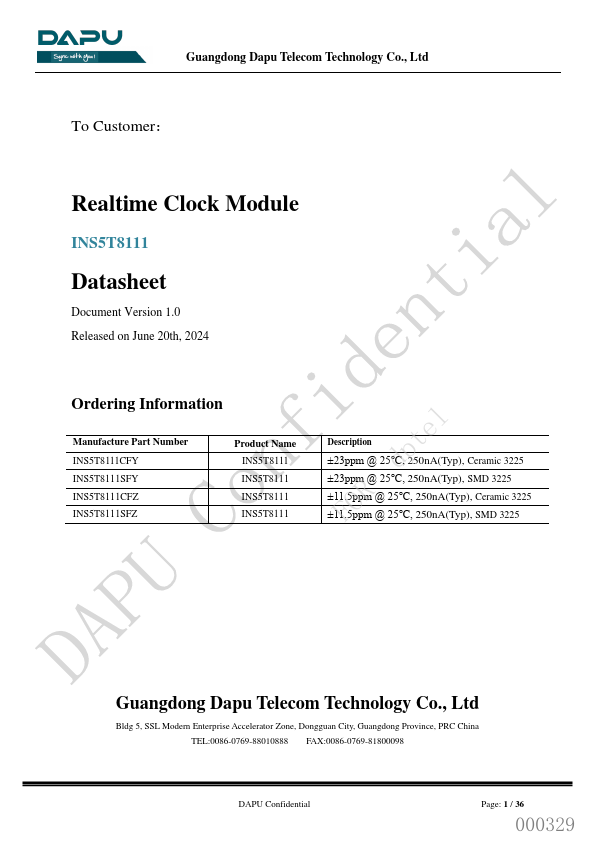

Ordering Information
Manufacture Part Number INS5T8111CFY INS5T8111SFY INS5T8111CFZ INS5T8111SFZ
Product Name INS5T8111 INS5T8111 INS5T8111 INS5T8111 el Description dpt ±23ppm @ 25℃, 250n A(Typ), Ceramic 3225
±23ppm @ 25℃, 250n A(Typ), SMD 3225
R ±11.5ppm @ 25℃, 250n A(Typ), Ceramic 3225 FO ±11.5ppm @ 25℃, 250n A(Typ), SMD 3225
Guangdong Dapu Tele Technology Co., Ltd
Bldg 5, SSL Modern Enterprise Accelerator Zone, Dongguan City, Guangdong Province, PRC China TEL:0086-0769-88010888 FAX:0086-0769-81800098
DAPU Confidential
Page: 1 / 36
Guangdong Dapu Tele Technology Co., Ltd
1 Overview
INS5T8111 is an ultra-low power consumption I2C bus interface real-time clock. It embeds a 32.768KHz Crystal. It supports calendar (year, month, day, hour, minute, second), clock and timer functions etc.

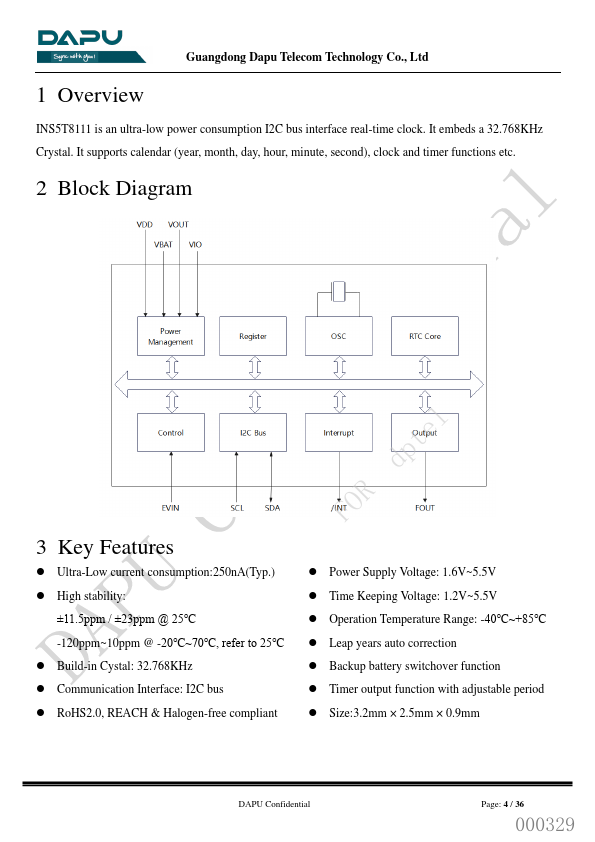

2 Block Diagram
3 Key Features
- Ultra-Low current consumption:250n A(Typ.)
- High stability:
±11.5ppm / ±23ppm @ 25℃ -120ppm~10ppm @ -20℃~70℃, refer to 25℃
- Build-in Cystal: 32.768KHz
- munication Interface: I2C bus
- Ro HS2.0, REACH & Halogen-free pliant dptel FOR
- Power Supply Voltage: 1.6V~5.5V
- Time Keeping Voltage: 1.2V~5.5V
- Operation Temperature Range: -40℃~+85℃
- Leap years auto correction
- Backup battery switchover function
- Timer output function with adjustable...
