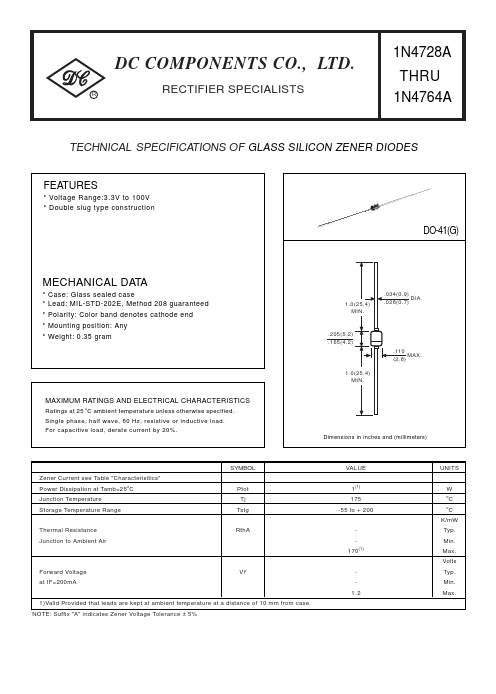

1N4750A
1N4750A is GLASS SILICON ZENER DIODES manufactured by DC COMPONENTS.
- Part of the 1N4728A comparator family.
- Part of the 1N4728A comparator family.
FEATURES
- Voltage Range:3.3V to 100V
- Double slug type construction
DO-41(G)
MECHANICAL DATA
- Case: Glass sealed case
- Lead: MIL-STD-202E, Method 208 guaranteed
- Polarity: Color band denotes cathode end
- Mounting position: Any
- Weight: 0.35 gram
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25 o C ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load, derate current by 20%.
1.0(25.4) MIN.
.034(0.9) DIA.
.028(0.7)
.205(5.2) .165(4.2)
1.0(25.4) MIN.
.110 MAX.
(2.8)
Dimensions in inches and (millimeters)
Zener Current see Table "Characterisitics" Power Dissipation at Tamb=25o C Junction Temperature Storage Temperature Range
Thermal Resistance Junction to Ambient Air
SYMBOL
Ptot Tj
Tstg
Rth A
Forward Voltage
VF at IF=200m A
1)Valid Provided that leads are kept at ambient temperature at a distance of 10 mm from case. NOTE: Suffix "A" indicates Zener Voltage Tolerance ± 5%
VALUE
1(1) 175 -55 to + 200
170(1)
UNITS
W o C o C K/m W Typ. Min. Max. Volts Typ. Min. Max.

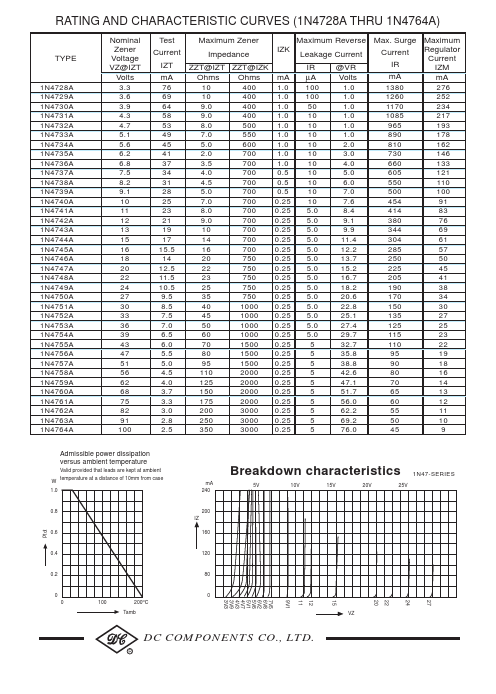

RATING AND CHARACTERISTIC CURVES (1N4728A THRU 1N4764A)
TYPE
1N4728A 1N4729A 1N4730A 1N4731A 1N4732A 1N4733A 1N4734A 1N4735A 1N4736A 1N4737A 1N4738A 1N4739A 1N4740A 1N4741A 1N4742A 1N4743A 1N4744A 1N4745A 1N4746A 1N4747A 1N4748A 1N4749A 1N4750A 1N4751A 1N4752A 1N4753A 1N4754A 1N4755A 1N4756A 1N4757A 1N4758A 1N4759A 1N4760A 1N4761A 1N4762A 1N4763A 1N4764A
Nominal Zener Voltage
VZ@IZT Volts 3.3 3.6 3.9 4.3 4.7 5.1 5.6 6.2 6.8 7.5 8.2 9.1 10 11 12 13 15 16 18 20 22 24 27 30 33 36 39 43 47 51 56 62 68 75 82 91...
